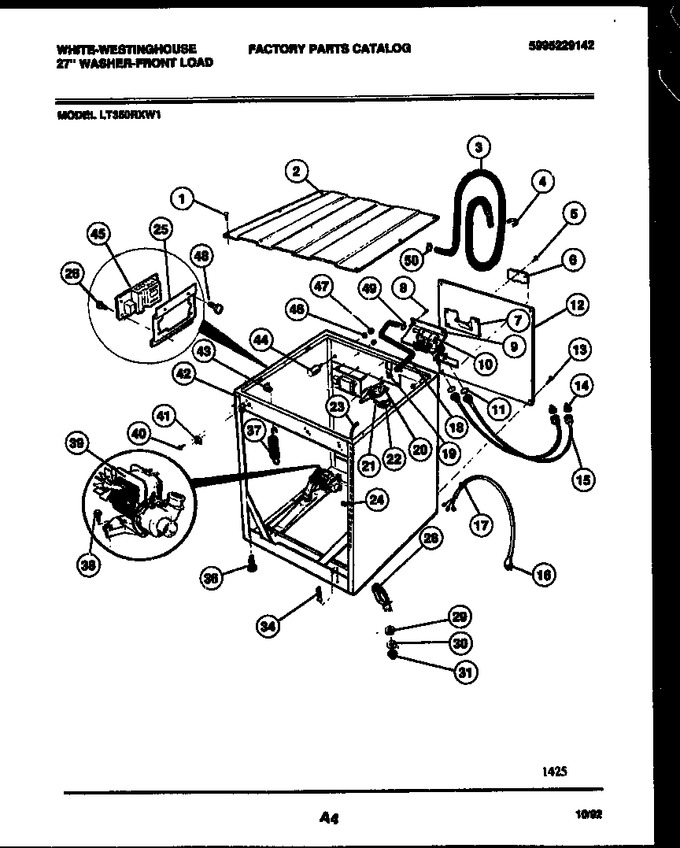

02 - Console, Control And Door Parts


03 - Cabinet Parts


04 - Tub And Component Parts


05 - Drive Components


06 - Counterweights


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303010202		Screw (8)				$ 5.15
2	3206232		Plate-top		Appelez-nous	-
3	131027500		Hose-drain		Appelez-nous	-
4	3202981		Clamp		Appelez-nous	-
5	5303010202		Screw				$ 5.15
6	3202982		Cover-drain Hose		Appelez-nous	-
7	5303286635		Cover		Appelez-nous	-
8	08015356		Screw		Appelez-nous	-
9	5303286611		Bracket		Appelez-nous	-
10	134190200		Valve-water   (Replaces: 5303207418)			Immediately	$ 153.09
11	3261058		Washer		Appelez-nous	-
12	5303286633		Panel Back		Appelez-nous	-
13	5303010202		Screw				$ 5.15
14	5303261059		Washer-filter		Appelez-nous	-
15	5303280320		Hose-inlet		Appelez-nous	-
16	5303202995		Service Cord		Appelez-nous	-
17	3261064		Strain Relief		Appelez-nous	-
18	131028000		Hose		Appelez-nous	-
19	08001916		Clamp		Appelez-nous	-
20	5300154361		Air Gap		Appelez-nous	-
21	08015356		Screw (2)		Appelez-nous	-
22	08015227		Bracket		Appelez-nous	-
23	5300029554		Hose-water Level Control		Appelez-nous	-
24	5300502207		Clamp		Appelez-nous	-
25	5303286613		Bracket-speed Control		Appelez-nous	-
26	5303286614		Screw (4)		Appelez-nous	-
28	5303202996		Shoe & Spring		Appelez-nous	-
29	5303202998		Grommet (2)		Appelez-nous	-
30	5303203000		Nut-locking (2)		Appelez-nous	-
31	5303203002		Nut-retaining (2)		Appelez-nous	-
34	3261082		Bracket-spring		Appelez-nous	-
36	5303937190		Foot Bolt/pad/nut (4)   (Replaces: 131003900)				$ 65.92
37	5303937063		Spring (4)		Appelez-nous	-
38	3202989		Screw (2)		Appelez-nous	-
39	5303202988		Pump-complete		Appelez-nous	-
40	5303281150		Screw (4)		Appelez-nous	-
41	3261088		Spacer (2)		Appelez-nous	-
42	5303937096		Body-almond		Appelez-nous	-
43	5308015384		Bracket-spring (4)		Appelez-nous	-
44	5303202990		Suppressor-noise		Appelez-nous	-
45	131070600		Speed Control		Appelez-nous	-
46	3202987		Washer		Appelez-nous	-
47	3202985		Nut		Appelez-nous	-
48	5303010202		Screw-brkt (2)				$ 5.15
49	08001916		Clamp		Appelez-nous	-
50	5303161404		Clamp		Appelez-nous	-
*68832	5303010202		Screw-cover				$ 5.15
*68832	08015302		Screw-air Gap		Appelez-nous	-
*68832	5303204987		Retainer-drain Hose		Appelez-nous	-
*68832	3205717		Nut-cover		Appelez-nous	-
