02 - Console, Control And Door Parts


03 - Cabinet Parts

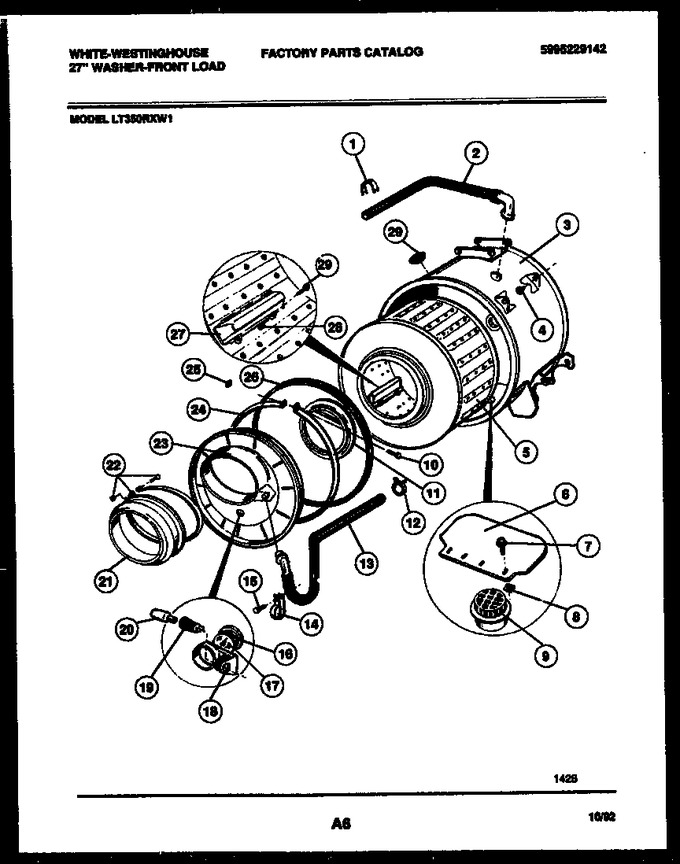

04 - Tub And Component Parts


05 - Drive Components


06 - Counterweights


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300605241		Clamp		Appelez-nous	-
2	5303203056		Hose-vent		Appelez-nous	-
3	3203005		Tub-outer		Appelez-nous	-
4	5300125501		Grommet (4)		Appelez-nous	-
5	5303203006		Tub-spin-w/shaft		Appelez-nous	-
6	5303203007		Cover-sump		Appelez-nous	-
7	5300502495		Screw (4)		Appelez-nous	-
8	3261100		Clip (4)		Appelez-nous	-
9	5303283920		Strainer-sump		Appelez-nous	-
10	08015332		Bolt		Appelez-nous	-
11	5303261136		Ring-deflector				$ 92.93
12	08015373		Clamp		Appelez-nous	-
13	5308015184		Hose-fill		Appelez-nous	-
14	08015369		Clamp		Appelez-nous	-
15	5303281035		Screw		Appelez-nous	-
16	5300501201		Shield		Appelez-nous	-
17	5300000495		Lens		Appelez-nous	-
18	5300028710		Grommet		Appelez-nous	-
19	5308015211		Socket		Appelez-nous	-
20	3203012		Bulb		Appelez-nous	-
21	5303261132		Boot		Appelez-nous	-
22	5303261133		Clamp-nut & Screw		Appelez-nous	-
23	5300137181		Tub Front		Appelez-nous	-
24	5303272669		Clamp Ring		Appelez-nous	-
25	08015290		Nut		Appelez-nous	-
26	5303261135		Gasket		Appelez-nous	-
27	5308015245		Vane		Appelez-nous	-
28	3203010		Speednut (4)				$ 14.89
29	5300502495		Screw (4)		Appelez-nous	-
30	3261139		Plug-vent		Appelez-nous	-
*68835	5303286618		Harness, Main		Appelez-nous	-
*68835	08015356		Screw, Ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
