02 - Console And Control Parts
03 - Top Parts
04 - Door Parts
05 - Cabinet Parts
06 - Tub And Component Parts
07 - Drive Components
08 - Counterweights
SELECT A DIAGRAM
New Model Search:

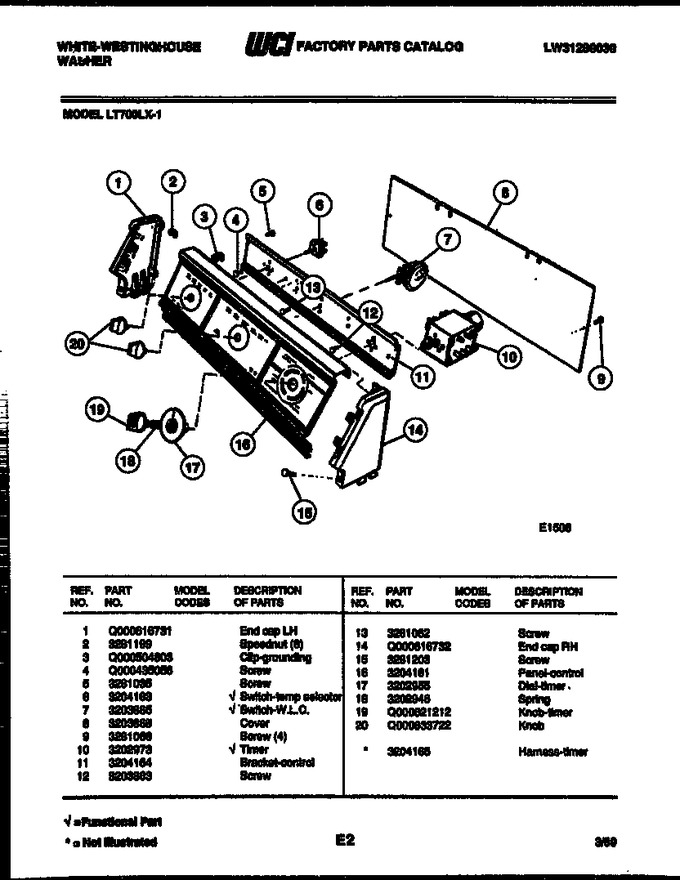

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Q000616731 | End Cap Lh |
|
- | |||||
| 2 | 3281199 | Speednut (8) |
|
- | |||||
| 3 | Q000504803 | Clip-grounding |
|
- | |||||
| 4 | Q000435056 | Screw |
|
- | |||||
| 5 | 3281035 | Screw |
|
- | |||||
| 6 | 3204163 | Switch-temp Selector |
|
- | |||||
| 7 | 3203865 | Switch, W.l.c. |
|
- | |||||
| 8 | 3203868 | Cover |
|
- | |||||
| 9 | 3281066 | Screw (4) |
|
- | |||||
| 10 | 3202973 | Timer |
|
- | |||||
| 11 | 3204164 | Bracket-control |
|
- | |||||
| 12 | 3203863 | Screw |
|
- | |||||
| 13 | 3261062 | Screw |
|
- | |||||
| 14 | Q000616732 | End Cap - Rh |
|
- | |||||
| 15 | 3281203 | Screw |
|
- | |||||
| 16 | 3204161 | Panel-control |
|
- | |||||
| 17 | 3202955 | Dial-timer |
|
- | |||||
| 18 | 3202946 | Spring |
|
- | |||||
| 19 | Q000621212 | Knob-timer |
|
- | |||||
| 20 | Q000633722 | Knob |
|
- | |||||
| *19422 | 3204165 | Harness-timer |
|
- |
