02 - Console And Control Parts

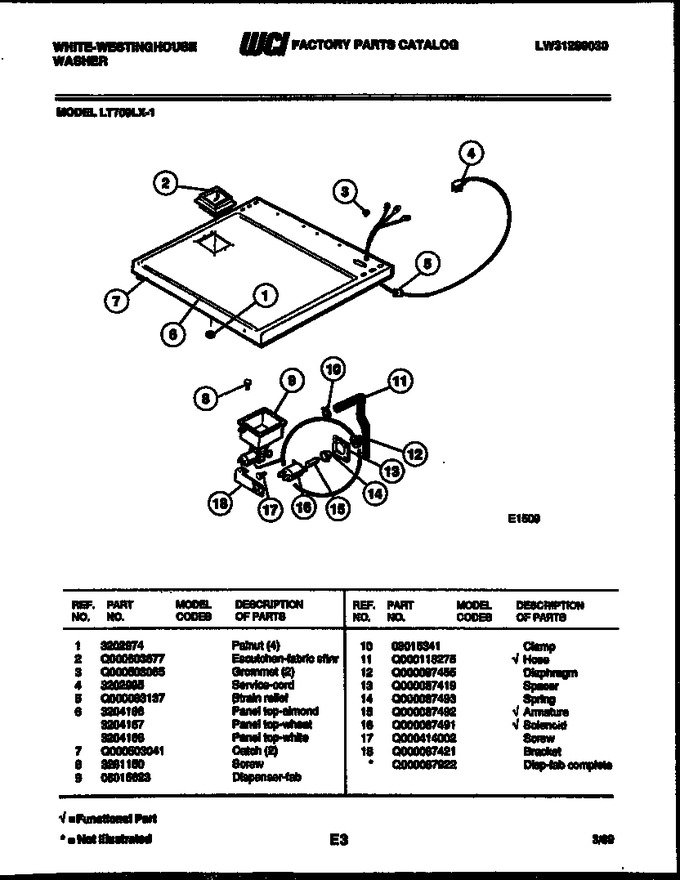

03 - Top Parts
04 - Door Parts
05 - Cabinet Parts
06 - Tub And Component Parts
07 - Drive Components
08 - Counterweights
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202974 | Palnut (4) |
|
- | |||||
| 2 | Q000603677 | Escutchen-fabric Sftnr |
|
- | |||||
| 2 | Q000443003 | Nut |
|
- | |||||
| 3 | Q000503065 | Grommet (2) |
|
- | |||||
| 4 | 3202995 | Service Cord |
|
- | |||||
| 5 | Q000063137 | Strain Relief |
|
- | |||||
| 6 | 3204166 | Panel Top-almond |
|
- | |||||
| 7 | Q000503041 | Catch (2) |
|
- | |||||
| 8 | 3281150 | Screw |
|
- | |||||
| 9 | 08015623 | Dispenser-fab |
|
- | |||||
| 10 | 08015341 | Clamp |
|
- | |||||
| 11 | Q000118275 | Hose |
|
- | |||||
| 12 | Q000087455 | Diaphragm |
|
- | |||||
| 13 | Q000087419 | Spacer |
|
- | |||||
| 14 | Q000087493 | Spring |
|
- | |||||
| 15 | Q000087492 | Armature |
|
- | |||||
| 16 | Q000087491 | Solenoid |
|
- | |||||
| 17 | Q000414002 | Screw |
|
- | |||||
| 18 | Q00008742 | Bracket |
|
- | |||||
| *19423 | Q000087922 | Disp-fab Complete |
|
- |
