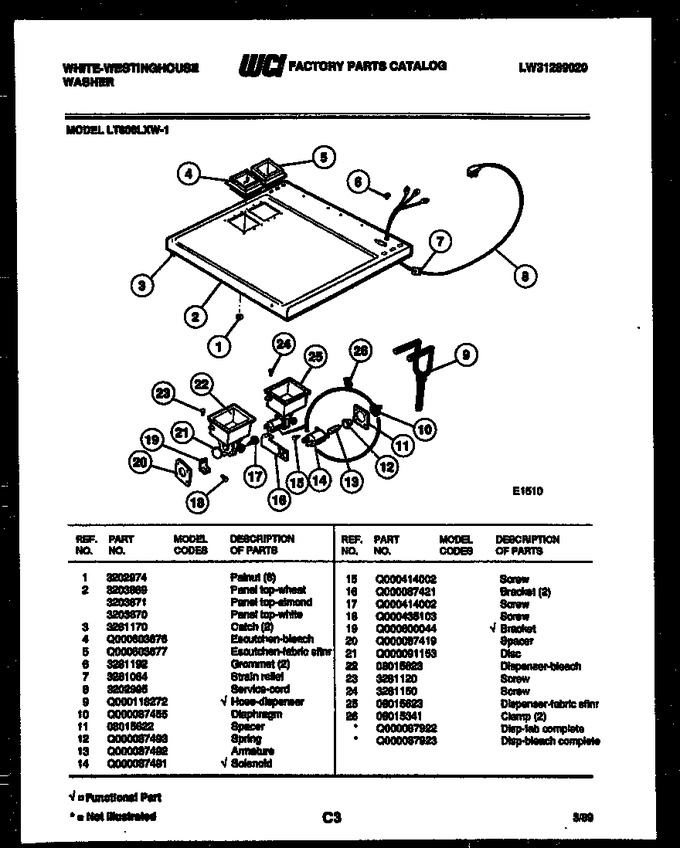

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202974 | Palnut (8) |
|
- | |||||
| 2 | 3203869 | Panel Top-wheat |
|
- | |||||
| 3 | 3281170 | Catch (2) |
|
- | |||||
| 4 | Q000603676 | Escutchen-bleach |
|
- | |||||
| 5 | Q000603677 | Escutchen-fabric Sftnr |
|
- | |||||
| 6 | 3281192 | Grommet (2) |
|
- | |||||
| 7 | 3261064 | Strain Relief |
|
- | |||||
| 8 | 3202995 | Service Cord |
|
- | |||||
| 9 | Q000118272 | Hose-dispenser |
|
- | |||||
| 10 | Q000087455 | Diaphragm |
|
- | |||||
| 11 | 08015622 | Spacer |
|
- | |||||
| 12 | Q000087493 | Spring |
|
- | |||||
| 13 | Q000087492 | Armature |
|
- | |||||
| 14 | Q000087491 | Solenoid |
|
- | |||||
| 15 | Q000414002 | Screw |
|
- | |||||
| 16 | Q000087421 | Bracket (2) |
|
- | |||||
| 17 | Q000414002 | Screw |
|
- | |||||
| 18 | Q000435103 | Screw |
|
- | |||||
| 19 | Q000600044 | Bracket |
|
- | |||||
| 20 | Q000087419 | Spacer |
|
- | |||||
| 21 | Q000091153 | Disc |
|
- | |||||
| 22 | 08015623 | Dispenser-bleach |
|
- | |||||
| 23 | 3281120 | Screw |
|
- | |||||
| 24 | 3281150 | Screw |
|
- | |||||
| 25 | 08015623 | Dispenser-fabric Sftnr |
|
- | |||||
| 26 | 08015341 | Clamp (2) |
|
- | |||||
| *19189 | Q000087922 | Disp-fab Complete |
|
- | |||||
| *19189 | Q000087923 | Disp-bleach Complete |
|
- |
