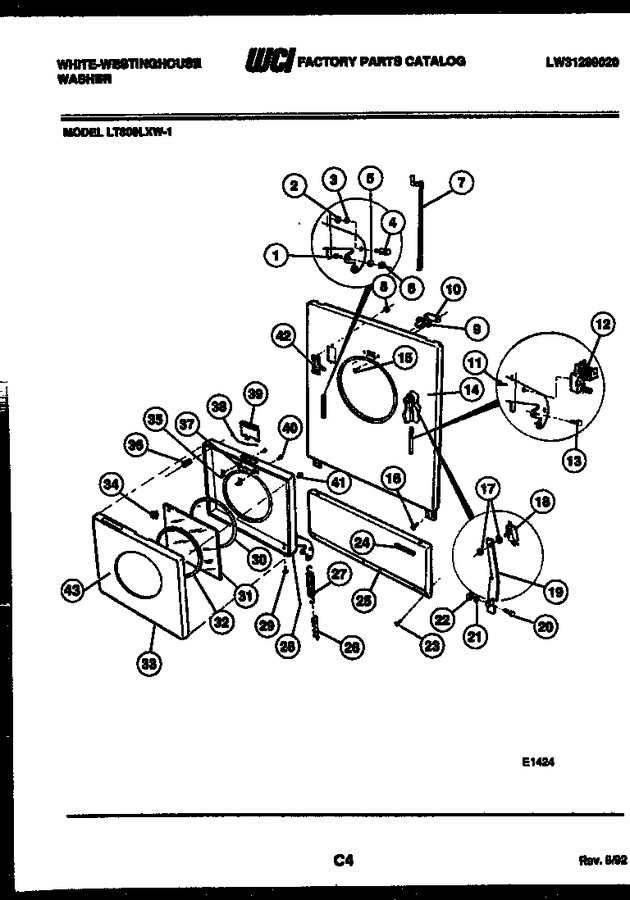

02 - Console And Control Parts
03 - Top Door Parts
04 - Door Parts
05 - Cabinet Parts
06 - Tub And Component Parts
07 - Drive Components
08 - Counterweights
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Q000007617 | Screw |
|
- | |||||
| 2 | Q000443003 | Nut |
|
- | |||||
| 3 | Q000402801 | Washer |
|
- | |||||
| 4 | Q000600102 | Stud |
|
- | |||||
| 5 | Q000402801 | Washer |
|
- | |||||
| 6 | Q000443003 | Nut |
|
- | |||||
| 7 | Q000151621 | Spring-indicator |
|
- | |||||
| 8 | 3202974 | Palnut |
|
- | |||||
| 9 | Q000091191 | Catch-door |
|
- | |||||
| 10 | Q000500531 | Nut-strip |
|
- | |||||
| 11 | Q000406801 | Screw |
|
- | |||||
| 12 | Q000129823 | Solenoid |
|
- | |||||
| 13 | Q000007617 | Screw-hinge |
|
- | |||||
| 14 | Q000603536 | Panel-front (wheat) |
|
- | |||||
| 15 | 08015286 | Screw |
|
- | |||||
| 16 | Q000505564 | Screw |
|
- | |||||
| 17 | Q000501450 | Locknut |
|
- | |||||
| 18 | Q000184701 | Switch-door |
|
- | |||||
| 19 | Q000273137 | Arm-door Switch |
|
- | |||||
| 20 | Q000503596 | Screw |
|
- | |||||
| 21 | Q000402801 | Washer |
|
- | |||||
| 22 | Q000402601 | Nut |
|
- | |||||
| 23 | Q000500718 | Screw |
|
- | |||||
| 24 | Q000604443 | Medallion |
|
- | |||||
| 25 | Q000602006 | Panel-service-wheat |
|
- | |||||
| 26 | 3261082 | Bracket-spring |
|
- | |||||
| 27 | Q000011943 | Spring |
|
- | |||||
| 28 | Q000184779 | Panel-i.d.-wheat |
|
- | |||||
| 29 | C000505617 | Screw |
|
- | |||||
| 30 | Q000147492 | Gasket-door |
|
- | |||||
| 31 | Q000017901 | Glass |
|
- | |||||
| 32 | Q000183302 | Gasket |
|
- | |||||
| 33 | Q000603333 | Panel-o.d.-wheat |
|
- | |||||
| 34 | Q000040120 | Spacer (4) |
|
- | |||||
| 35 | Q000501661 | Clip (2) |
|
- | |||||
| 36 | Q000040118 | Spacer (2) |
|
- | |||||
| 37 | Q000600037 | Guide |
|
- | |||||
| 38 | Q000062204 | Bar |
|
- | |||||
| 39 | Q000151771 | Latch Bar |
|
- | |||||
| 40 | Q000403103 | Screw |
|
- | |||||
| 41 | Q000013435 | Bumper |
|
- | |||||
| 42 | 3202979 | Indicator |
|
- | |||||
| 43 | Q000166012 | Door-complete (white Only) |
|
- | |||||
| 12A | 0001825642 | Screw-solenoid (non-illustrated) |
|
- |
