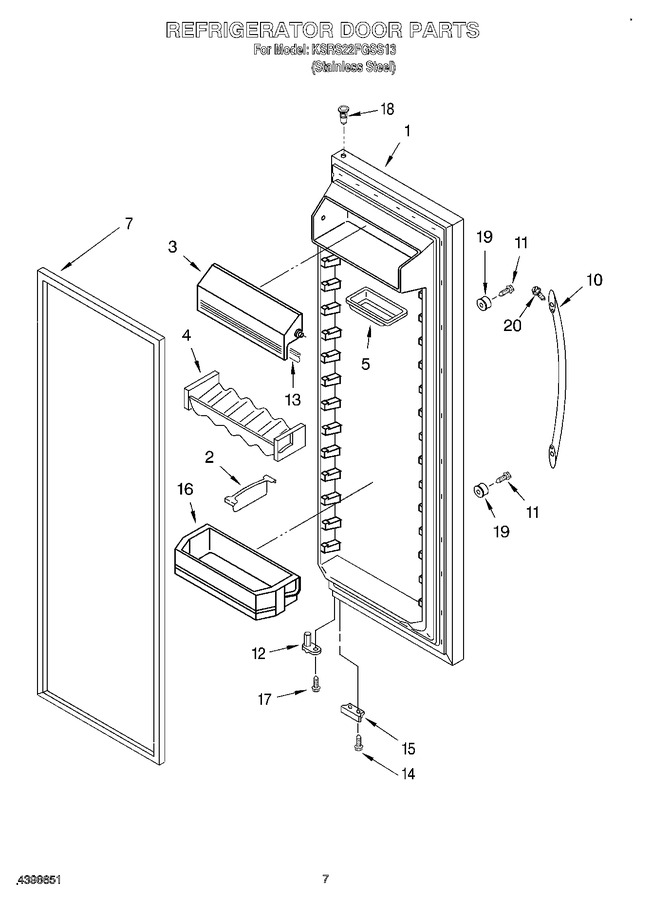

05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Unit


09 - Freezer Liner


10 - Air Flow


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2203452		Refrigerator Door (includes No.7)		Appelez-nous	-
2	2195497		Load Lock		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
7	2159081		Door Gasket, Magnetic (service) (black)				$ 287.64
10	2204454		Handle		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 7.04
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	2195952		Bracket, Door Stop		Appelez-nous	-
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
18	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 6.98
19	2203690		Stud, Handle		Appelez-nous	-
20	98654		Set Screw		Appelez-nous	-
