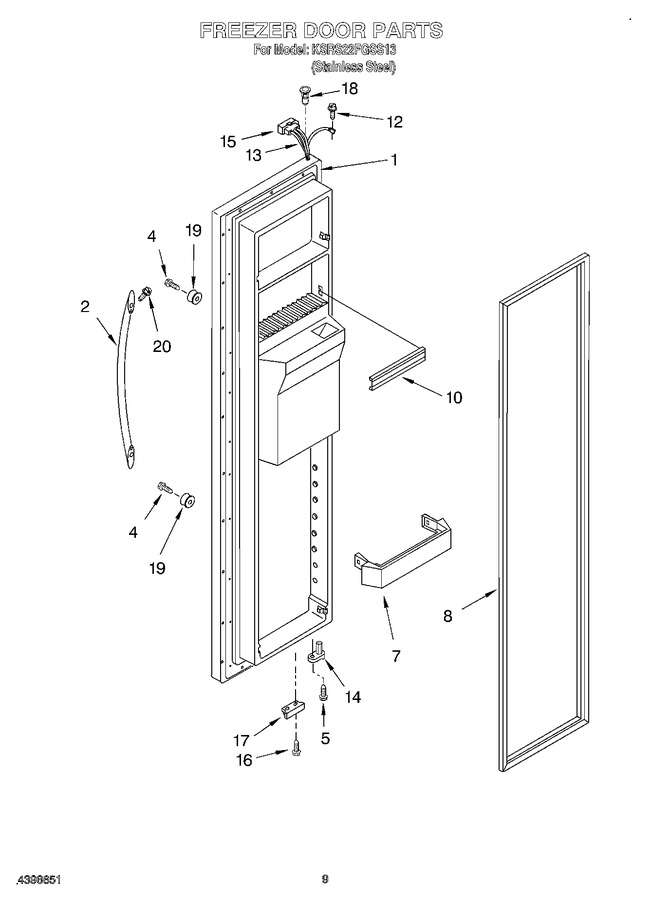

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205911		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2204454		Handle		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.04
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
7	2171071		Shelf Bin (4)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (service) (black)				$ 279.35
10	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 20.80
12	WP489128		Screw   (Replaces: 8281149)				$ 9.79
13	2187269		Wire Harness		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
15	WP2154473		Connector   (Replaces: 2154473)				$ 21.29
16	WP489483		Screw   (Replaces: 489420)				$ 9.78
17	2195952		Bracket, Door Stop		Appelez-nous	-
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 6.98
19	2203690		Stud, Handle		Appelez-nous	-
20	98654		Set Screw		Appelez-nous	-
