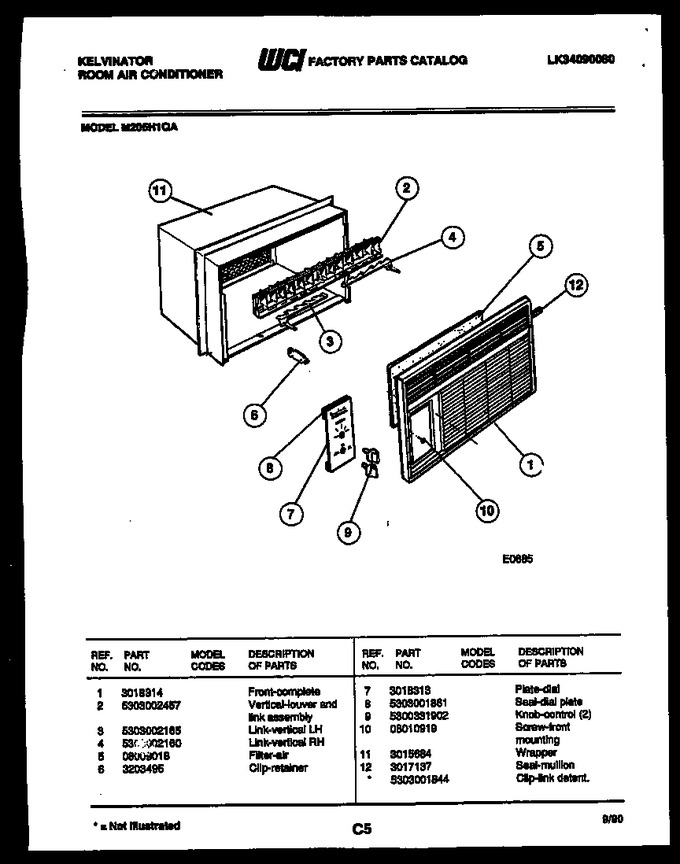

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018314 | Front-complete |
|
- | |||||
| 2 | 5303002457 | Vertical Louver And Link Assembly |
|
- | |||||
| 3 | 5303002165 | Link-vertical Lh |
|
- | |||||
| 4 | 5303002160 | Link-vertical Rh |
|
- | |||||
| 5 | 08009018 | Filter-air |
|
- | |||||
| 6 | 3203495 | Clip-retainer |
|
- | |||||
| 7 | 3018313 | Plate-dial |
|
- | |||||
| 8 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 9 | 5300331902 | Knob-control (2) |
|
- | |||||
| 10 | 08010919 | Screw-front Mounting |
|
- | |||||
| 11 | 3015684 | Wrapper |
|
- | |||||
| 12 | 3017137 | Seal-mullion |
|
- | |||||
| *17780 | 5303001844 | Clip-link Detent |
|
- |
