02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - Compressor
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

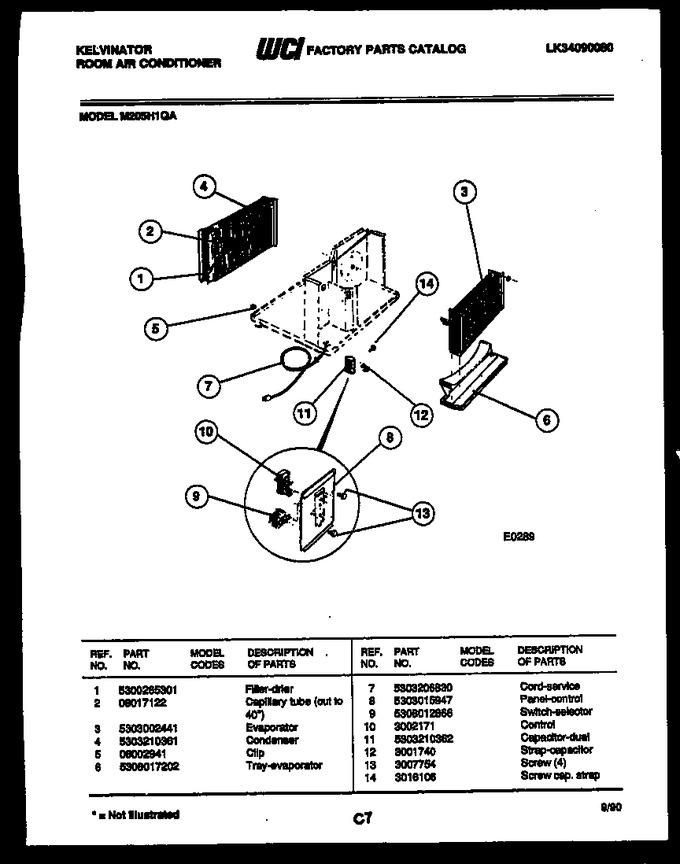

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300265301 | Filler-drier |
|
$ 284.30 | |||||
| 2 | 08017122 | Capillary Tube (cut To 40``) |
|
- | |||||
| 3 | 5303002441 | Evaporator |
|
- | |||||
| 4 | 5303210361 | Condenser |
|
- | |||||
| 5 | 08002941 | Clip |
|
- | |||||
| 6 | 5308017202 | Tray-evaporator |
|
- | |||||
| 7 | 5303206830 | Cord-service |
|
- | |||||
| 8 | 5303015947 | Panel-control |
|
- | |||||
| 9 | 5308012866 | Switch-selector |
|
- | |||||
| 10 | 3002171 | Control |
|
- | |||||
| 11 | 5303210362 | Capacitor-dual |
|
- | |||||
| 12 | 3001740 | Strap-capacitor |
|
- | |||||
| 13 | 3007754 | Screw (4) |
|
- | |||||
| 14 | 3016106 | Screw-cap Strap |
|
- |
