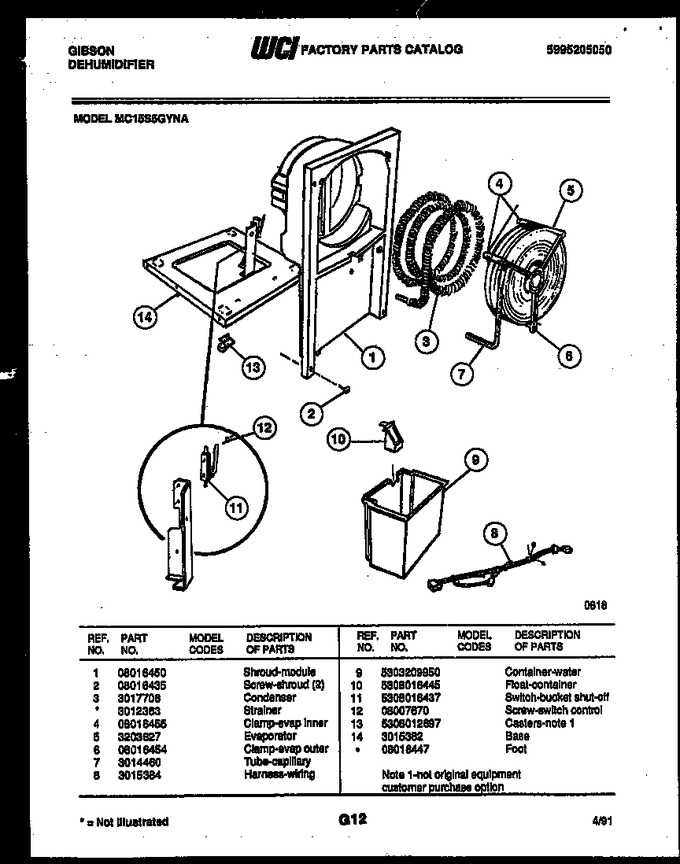

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016450 | Shroud-module |
|
- | |||||
| 2 | 08016435 | Screw-shroud (2) |
|
- | |||||
| 3 | 3017706 | Condenser |
|
- | |||||
| 4 | 08016455 | Clamp-evap Inner |
|
- | |||||
| 5 | 3203627 | Evaporator |
|
- | |||||
| 6 | 08016454 | Clamp-evap Outer |
|
- | |||||
| 7 | 3014460 | Tube-capillary |
|
- | |||||
| 8 | 3015384 | Harness-wiring |
|
- | |||||
| 9 | 5303209950 | Container-water |
|
- | |||||
| 10 | 5308016445 | Float-container |
|
- | |||||
| 11 | 5308016437 | Switch-bucket Shut-off |
|
$ 41.55 | |||||
| 12 | 08007670 | Screw-switch Control |
|
- | |||||
| 13 | 5308012697 | Casters (not Original Equipment Customer Purchase Option |
|
- | |||||
| 14 | 3015382 | Base |
|
- | |||||
| *38518 | 08016447 | Foot |
|
- | |||||
| 3A | 3012363 | Strainer (non-illustrated) |
|
- |
