| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

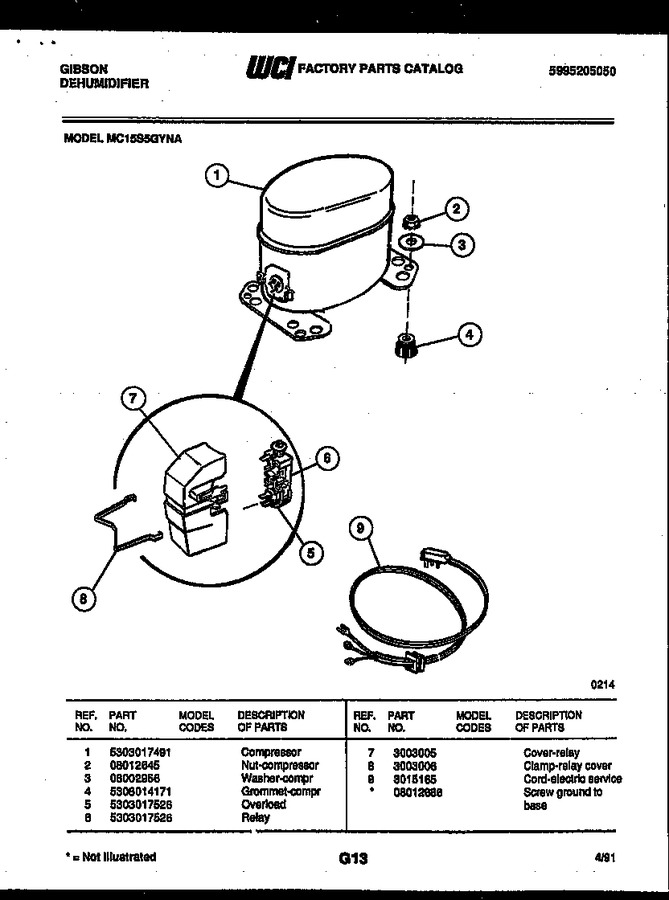

| 1 | 5303017491 | Compressor |
|
- | |||||
| 2 | 08012645 | Nut-compressor |
|
- | |||||
| 3 | 08002956 | Washer-compr |
|
- | |||||
| 4 | 5308014171 | Grommet-compr |
|
- | |||||
| 5 | 5303017526 | Overload |
|
- | |||||
| 6 | 5303017526 | Relay |
|
- | |||||
| 7 | 3003005 | Cover-relay |
|
- | |||||
| 8 | 3003006 | Clamp-relay Cover |
|
- | |||||
| 9 | 3015165 | Cord-electric Service |
|
- | |||||
| *38520 | 08012686 | Screw Ground To Base |
|
- |
