SELECT A DIAGRAM
02 - Cabinet And Control Parts
03 - Air Control Parts
04 - Water And Condensing Parts
05 - Compressor Parts
SELECT A DIAGRAM
New Model Search:

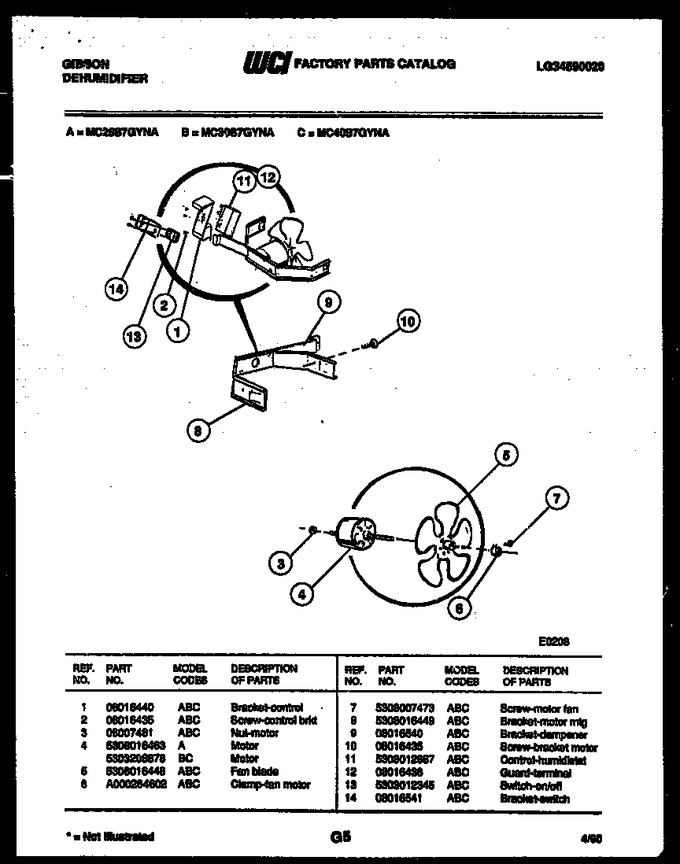

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016440 | Bracket-control |
|
- | |||||
| 2 | 08016435 | Screw-control Brkt |
|
- | |||||
| 3 | 08007481 | Nut |
|
$ 5.81 | |||||
| 4 | 5303208878 | Motor |
|
- | |||||
| 5 | 5308016448 | Fan Blade |
|
- | |||||
| 6 | A000264602 | Clamp-fan Motor |
|
- | |||||
| 7 | 5308007473 | Screw-motor Fan |
|
- | |||||
| 8 | 5308016449 | Bracket-motor Mtg |
|
- | |||||
| 9 | 08016540 | Bracket-dampener |
|
- | |||||
| 10 | 08016435 | Screw-bracket Motor |
|
- | |||||
| 11 | 5308012687 | Control-humidistat |
|
- | |||||
| 12 | 08016436 | Guard-terminal |
|
- | |||||
| 13 | 5303012345 | Switch-on/off |
|
$ 65.94 | |||||
| 14 | 08016541 | Bracket-switch |
|
- |
