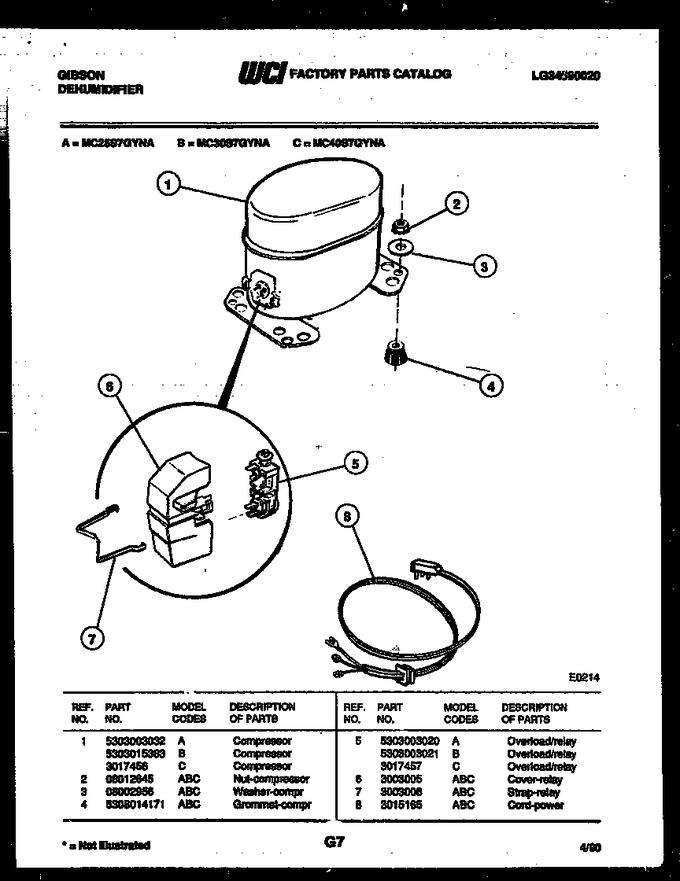

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017456 | Compressor |
|
- | |||||
| 2 | 08012645 | Nut-compressor |
|
- | |||||
| 3 | 08002956 | Washer-compr |
|
- | |||||
| 4 | 5308014171 | Grommet-compr |
|
- | |||||
| 5 | 3017457 | Overload/relay |
|
- | |||||
| 6 | 3003005 | Cover-relay |
|
- | |||||
| 7 | 3003006 | Strap-relay |
|
- | |||||
| 8 | 3015165 | Cord-power |
|
- |
