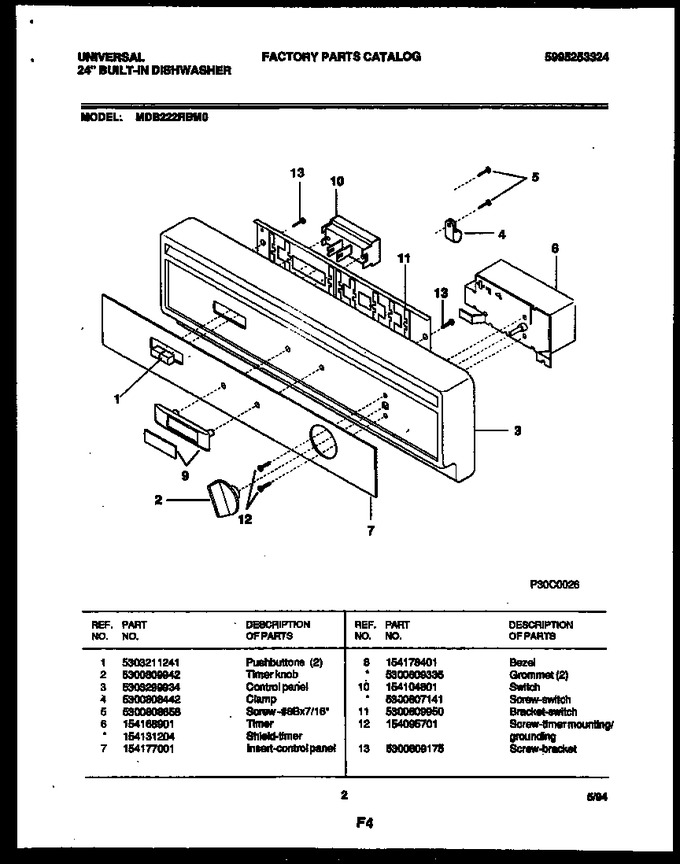

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211241 | Pushbuttons (2) |
|
$ 6.73 | |||||
| 2 | 5300809942 | Timer Knob |
|
- | |||||
| 3 | 5303299934 | Control Panel |
|
- | |||||
| 4 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 5 | 154419403 | Screw-8b X 7/16`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 6 | 154168901 | Timer |
|
$ 108.36 | |||||
| 7 | 154177001 | Insert-control Panel |
|
- | |||||
| 8 | 154178401 | Bezel |
|
- | |||||
| 10 | 154104801 | Switch |
|
- | |||||
| 11 | 5300809950 | Bracket-switch |
|
- | |||||
| 12 | 154095701 | Screw-timer Mounting/grounding |
|
$ 10.34 | |||||
| 13 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 10A | 5300807141 | Screw-switch (non-illustrated) |
|
- | |||||
| 6A | 154131204 | Shield-timer (non-illustrated) |
|
- | |||||
| 8A | 5300809335 | Grommet (2) (non-illustrated) |
|
- |
