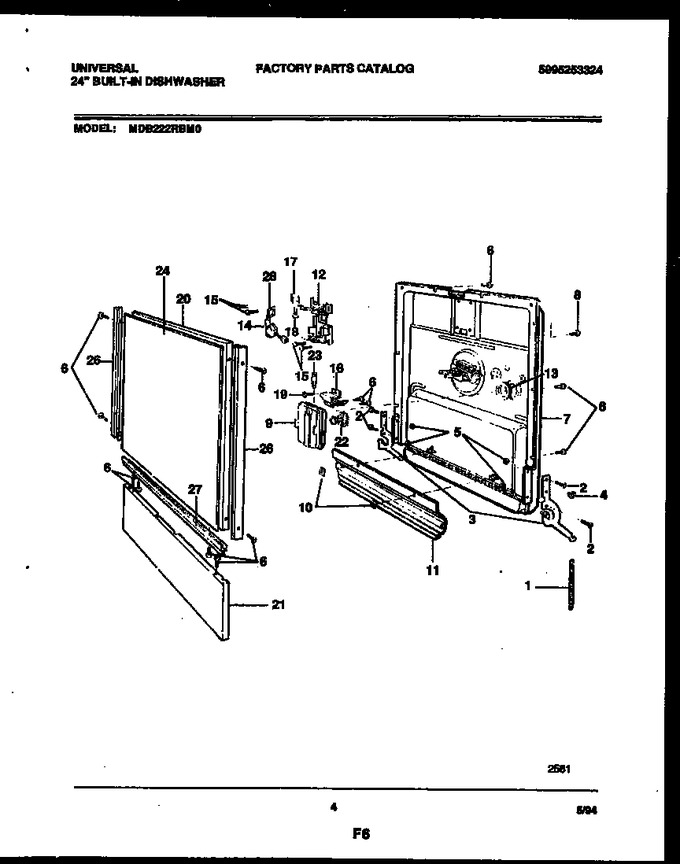

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809703 | Door Spring |
|
$ 39.04 | |||||
| 2 | 154093301 | Screw-10-24 X 58`` |
|
Immediately | $ 2.12 | ||||
| 3 | 5303270031 | Arm Assembly (2) |
|
$ 79.75 | |||||
| 4 | 5300805884 | Spring Pad (2) |
|
- | |||||
| 5 | 154079601 | Nut (4) |
|
$ 0.41 | |||||
| 6 | 5300809696 | Screw-8-18 |
|
- | |||||
| 7 | 154196902 | Door Assy |
|
$ 228.01 | |||||
| 8 | 5300808749 | Screw-8 X 5/8``(6) |
|
- | |||||
| 9 | 5300806753 | Body-dispenser |
|
$ 69.93 | |||||
| 10 | 154026601 | Speednut |
|
$ 25.67 | |||||
| 11 | 5300809773 | Baffle Seal |
|
- | |||||
| 12 | 154132504 | Latch Assy-chrome |
|
$ 110.62 | |||||
| 13 | 5300805631 | Grommet-rinse Agent |
|
$ 6.29 | |||||
| 14 | 154105301 | Switch |
|
$ 21.63 | |||||
| 15 | 218781101 | Screw-8a X 5/8`` (4) (Replaces: 154026501) |
|
$ 15.60 | |||||
| 16 | 5300809782 | Bi-metal Rinse Dispenser |
|
$ 47.51 | |||||
| 17 | 5300808712 | Latch Knob |
|
$ 31.71 | |||||
| 18 | 5300808715 | Screw, 8, 32 X 5/16`` |
|
- | |||||
| 19 | 5300807501 | Screw-8a X 1/2`` |
|
- | |||||
| 20 | 5303299935 | Door Panel-white |
|
- | |||||
| 21 | 5300809162 | Access Panel-black |
|
- | |||||
| 22 | 5303943094 | Fill-plug |
|
- | |||||
| 23 | 5300809898 | Plunger |
|
$ 36.49 | |||||
| 24 | 5300808908 | Insert-door Panel-almond/black |
|
- | |||||
| 26 | 5303943080 | Trim-rh And Lh Side |
|
- | |||||
| 27 | 154103603 | Trim-bottom |
|
- | |||||
| 28 | 154142901 | Cover-spring |
|
- | |||||
| 24A | 5303943093 | Insert-door Panel-white/clear |
|
- |
