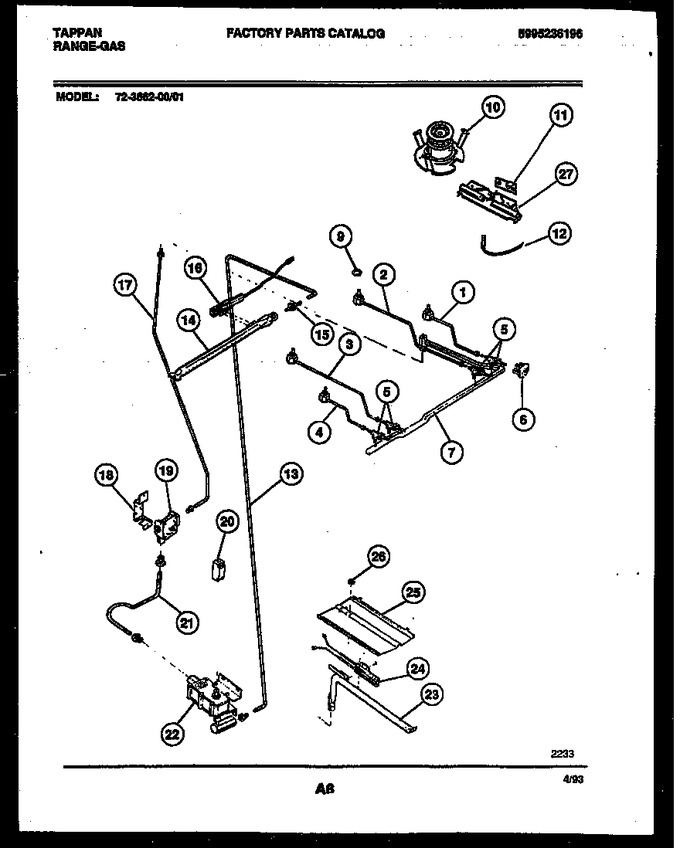

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303296366 | Burner Tube, Rf |
|
- | |||||
| 2 | 5303296368 | Burner Tube, Rr |
|
- | |||||
| 3 | 5303296369 | Burner Tube, Lr |
|
- | |||||
| 4 | 5303296367 | Burner Tube, Lf |
|
- | |||||
| 5 | 316020404 | Valve Top-3 Pos |
|
- | |||||
| 6 | 316032000 | Switch-ignition |
|
$ 58.70 | |||||
| 7 | 5303271375 | Manifold Pipe |
|
- | |||||
| 9 | 3013279 | Nut, Special |
|
$ 2.34 | |||||
| 10 | 5303011567 | Burner Top (4) |
|
- | |||||
| 11 | 3018617 | Retainer Electros |
|
- | |||||
| 12 | 5303283573 | Electrode |
|
- | |||||
| 13 | 5303211073 | Tube Supply Upper Oven |
|
- | |||||
| 14 | 3200502 | Burner-upper Oven |
|
- | |||||
| 15 | 316059100 | Mixer-straight |
|
- | |||||
| 16 | 12400035 | Igniter-oven Burner-upper (Replaces: 5303200508) |
|
Immediately | $ 60.44 | ||||
| 17 | 5303208495 | Tube-alum 3/8 Reg/manifold Pipe |
|
- | |||||
| 18 | 08067934 | Brkt Regulator |
|
- | |||||
| 19 | 316054803 | Control Regulator |
|
- | |||||
| 20 | 5303200669 | Spark Module |
|
- | |||||
| 21 | 5303208494 | Tube Reg/valve |
|
- | |||||
| 22 | 316059000 | Valve-safety Dual |
|
- | |||||
| 23 | 5303131634 | Burner-oven |
|
- | |||||
| 24 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 25 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 26 | 154079601 | Nut (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 27 | 3206267 | Channel-flash Tube |
|
$ 46.04 | |||||
| *84182 | 3018603 | Brkt-burner Support |
|
- | |||||
| *84183 | 3051420 | Pop Rivet |
|
- | |||||
| *84183 | 3131637 | Brkt Mixer |
|
- |
