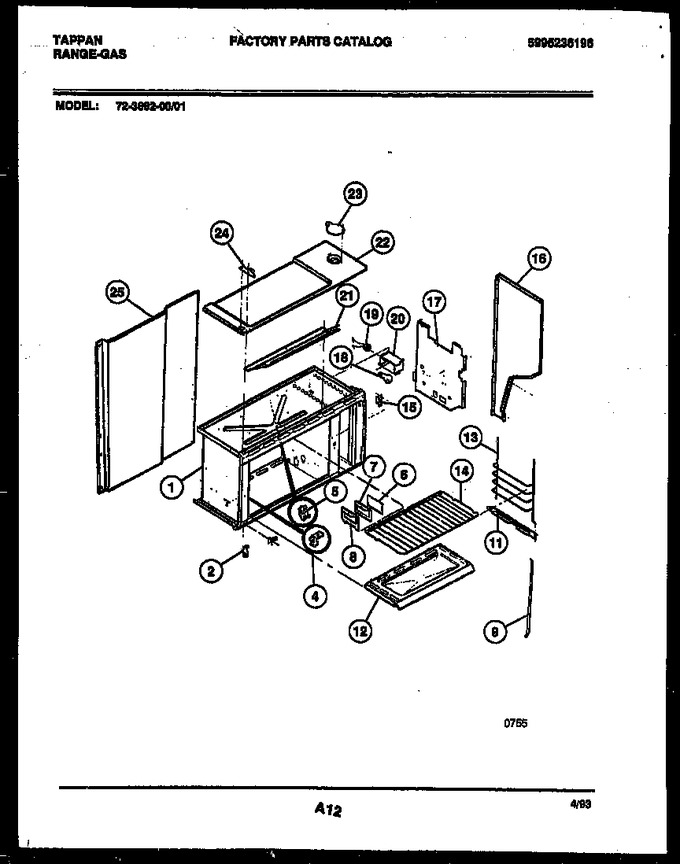

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303051166 | Hinge-door Assy |
|
- | |||||
| 4 | 08011665 | Plate Btm Hinge |
|
- | |||||
| 5 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 6 | 08011668 | Glass-ovn Lite Lens |
|
- | |||||
| 7 | 3200506 | Gskt Oven Light |
|
- | |||||
| 8 | 08011669 | Cover Oven Lens |
|
- | |||||
| 9 | 5303934092 | Seal-door |
|
- | |||||
| 11 | 3131616 | Glide-oven Btm |
|
- | |||||
| 12 | 3200488 | Bottom-oven |
|
- | |||||
| 13 | 5303934091 | Glide-oven Rack (2) |
|
- | |||||
| 14 | 08011675 | Rack-oven, Flat |
|
- | |||||
| 15 | 08011680 | Catch-door |
|
- | |||||
| 16 | 3051263 | Pnl B/s Right (white) |
|
- | |||||
| 16 | 5303269987 | Pnl B/s Left (white) |
|
- | |||||
| 17 | 5303208706 | Shield-wool U/o Side |
|
- | |||||
| 18 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 19 | 3014073 | Socket-oven Light |
|
- | |||||
| 20 | 5303290773 | Box U/o Light |
|
- | |||||
| 21 | 3200505 | Flue Back U/o |
|
- | |||||
| 22 | 3131625 | Pnl-top U/o |
|
- | |||||
| 23 | 08067732 | Cover-outlet (hood) |
|
- | |||||
| 24 | 3131613 | Hinge-door-top |
|
- | |||||
| 25 | 3203082 | Back-main |
|
- | |||||
| *84193 | 3200500 | Brkt-connec Mtg |
|
- | |||||
| *84193 | 3200509 | Insul O/u Upper |
|
- | |||||
| *84194 | 3204440 | Alum-foil |
|
- | |||||
| *84194 | 3200519 | Retainer Oven Burnr Upper |
|
- | |||||
| *84194 | 3200511 | Insul Wool |
|
- | |||||
| *84194 | 316012800 | Strike U/o Dr Align |
|
- |
