Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3200673 Bracket, Broiler Hinge, Lh Appelez-nous -
2 3131386 Fastener, Push Nut (2) Appelez-nous -
3 3018608 Body, Broiler Appelez-nous -
4 3018614 Pin, Hinge (2) Appelez-nous -
5 3018618 Spring, Broiler Lh C Type Appelez-nous -
6 3202803 Liner, Broiler Drawer Appelez-nous -
7 3131134 Panel - Broiler Almd Appelez-nous -
8 5303280334 Handle Appelez-nous -
9 3131387 Fastener-nylon Spacer (2) Appelez-nous -
10 3018610 Glide, Broiler (4) Special Order $ 29.40

11 5303131356 Insert-broiler Pan Appelez-nous -
12 5303013568 Pan-broiler Appelez-nous -
13 3131153 Channel, Broiler (4) Appelez-nous -
*84177 3206216 Utton-glide Appelez-nous -
12A 5303131258 Insul - Broiler Drawer (non-illustrated) Appelez-nous -
12B 5303280382 Screw (4) (non-illustrated) Appelez-nous -
12C 5303281651 Screw (2) (non-illustrated) Appelez-nous -
1A 3018860 Bracket, Broiler Hinge, Rh Appelez-nous -
5A 3018619 Spring, Broiler, Rh, C Type Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

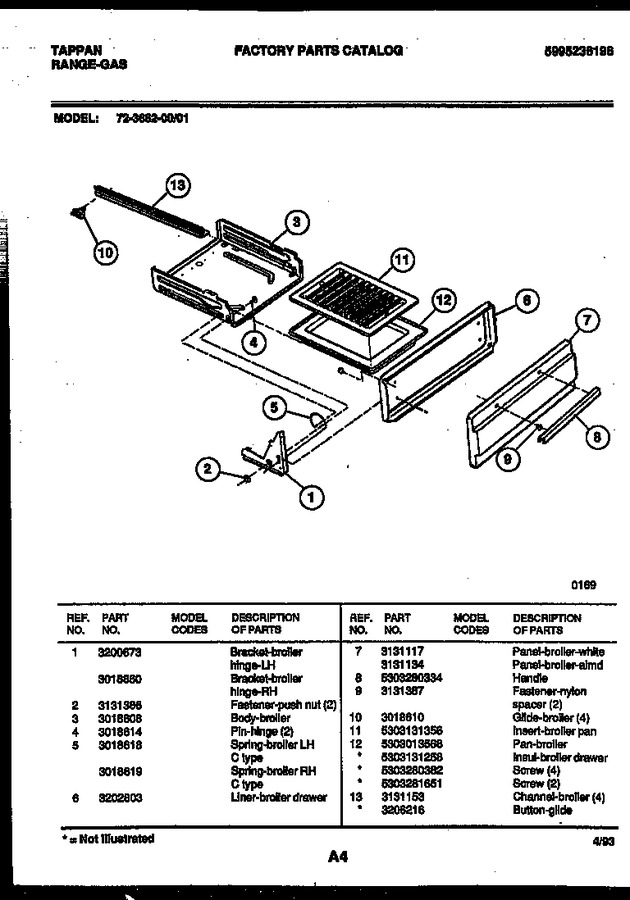

Diagram for 72-3662-23-01
