Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3014099 Spacer-bodyside, (8) Special Order $ 3.62

3 3014073 Socket-ovn. Light Appelez-nous -
4 40A15 Light Bulb   (Replaces: 5303013071) In-Stock Immediately $ 1.98

5 316007001 Chanl Dr Hng (2) Special Order $ 234.55

6 3131570 Cover Hng. Cutout (2) Special Order $ 7.35

7 3203082 Back-main Appelez-nous -
8 3131660 Shield, Rear Wall Appelez-nous -
9 3011813 Clip-wire Special Order $ 14.79

10 3131904 Flue Appelez-nous -
11 08067965 Gasket-flue Appelez-nous -
12 08067757 Cover Plate Appelez-nous -
13 3011597 Burner Box Appelez-nous -
14 5303269543 Panel-bodyside Rh (almond) Appelez-nous -
14 5303269545 Panel Bodyside Lh (almond) Appelez-nous -
15 5303203397 Screw-level (4) Special Order $ 14.49

16 5303281625 Rack Oven Appelez-nous -
17 5303212540 Bottom, Oven Appelez-nous -
18 5303284616 Clip Thermo Bulb (2) Special Order $ 9.86

19 08067962 Fstnr, Wire Appelez-nous -
20 5303270160 Base-broil Appelez-nous -
22 5303208642 Tube-post Lh Appelez-nous -
23 3018607 Cover Ign. Special Order $ 10.50

24 5303271606 Housing,oven Light Appelez-nous -
*84189 3015371 Cover-burner Box Appelez-nous -
*84189 08010570 Fastener, Leveling Leg Tee Nut Appelez-nous -
*84189 19100220001 Diagram Wiring- (not For Purchase.) Appelez-nous -
17A 3017142 Insul - Oven Wrap (non-illustrated) Special Order $ 193.50

17B 3203541 Insul - Oven Back (non-illustrated) Appelez-nous -
18A 08067961 Fastener-power Cord Appelez-nous -
19A 3131903 Bumper Special Order $ 55.36

19B 3014226 Supt-ovn-btm (2) (non-illustrated) Appelez-nous -
20A 5303015372 Cover Frnt Main (non-illustrated) Appelez-nous -
22A 5303208643 Tube-post-rh (non-illustrated) Appelez-nous -
22B 3200498 Insul Wool (non-illustrated) Appelez-nous -
22C 316282700 Screw Oven Btm (2) (non-illustrated)   (Replaces: 3131732) Special Order $ 9.93

22D 3131620 Shield-heat (non-illustrated) Appelez-nous -
23A 3934056 Anti-tip Brkt (non-illustrated) Appelez-nous -
6A 5304534000 Cord, Power (non-illustrated)   (Replaces: 3131425) In-Stock Immediately $ 33.37


    View Diagram in Separate Window     Print Icon   Print Part List

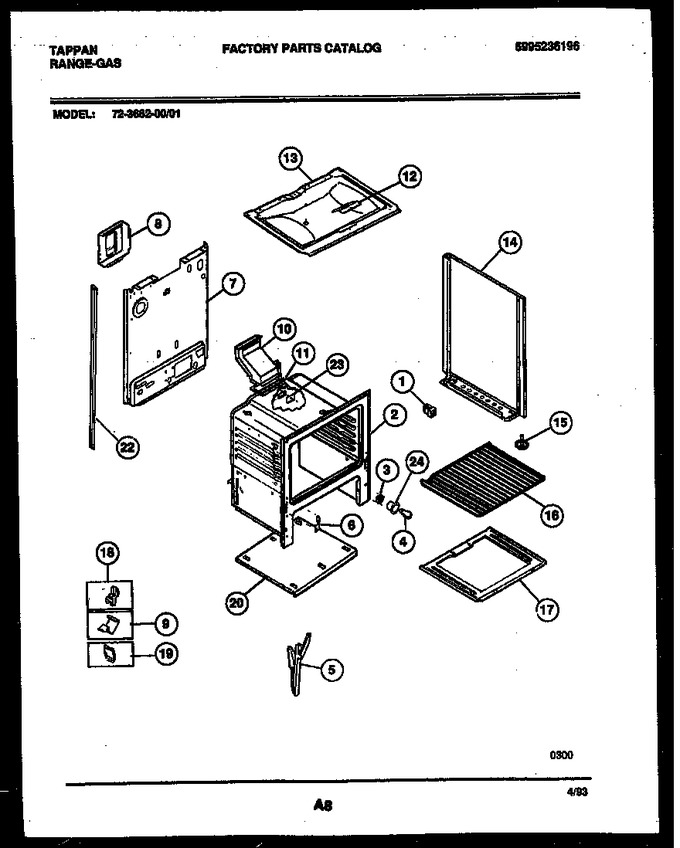

Diagram for 72-3662-23-01
