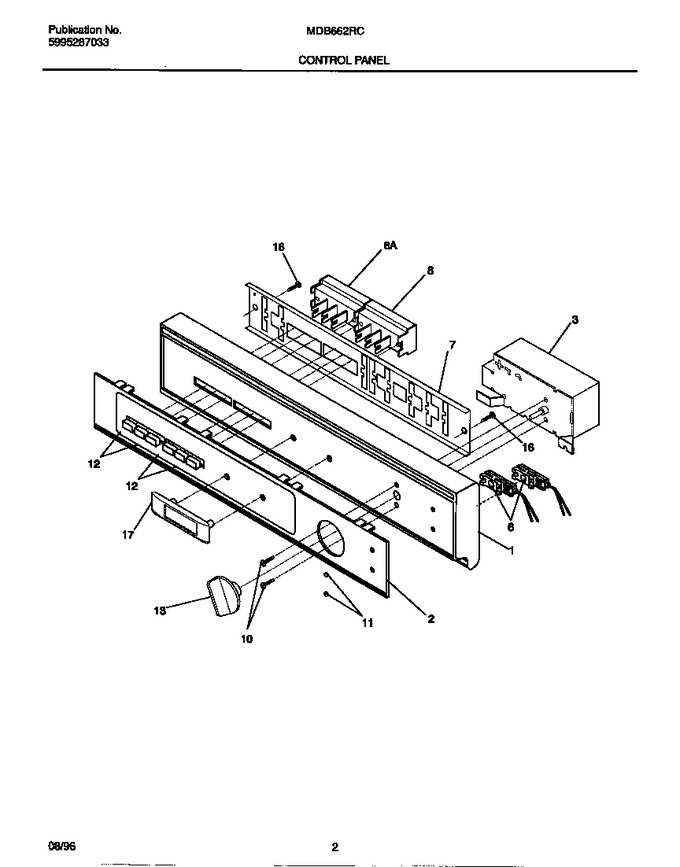

02 - Control Panel


03 - Detergent Cup


04 - Door


05 - Tub


06 - Motor & Pump


07 - Frame


08 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303299972		Panel-control, White		Appelez-nous	-
2	154177202		Insert-control Pnl		Appelez-nous	-
3	154169101		Timer				$ 412.44
6	5300809317		Light Assy		Appelez-nous	-
7	5300809950		Bracket-switch		Appelez-nous	-
8	154178201		Switch-selector		Appelez-nous	-
8	154104701		Switch-selector, 3 Button				$ 67.67
10	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
11	5300809784		Lens-light, Amber		Appelez-nous	-
12	5303269757		Pushbutton, White		Appelez-nous	-
13	5303269762		Knob-timer, White		Appelez-nous	-
16	154200401		Screw, 6-10 X 3/8, Pan Plask, Switch				$ 8.56
17	154178402		Bezel-nameplate		Appelez-nous	-
*40520	154131203		Shield-timer		Appelez-nous	-
*40521	5300809175		Screw 8b X 7/16``		Appelez-nous	-
*40522	5300809335		Grommet, Control Panel		Appelez-nous	-
