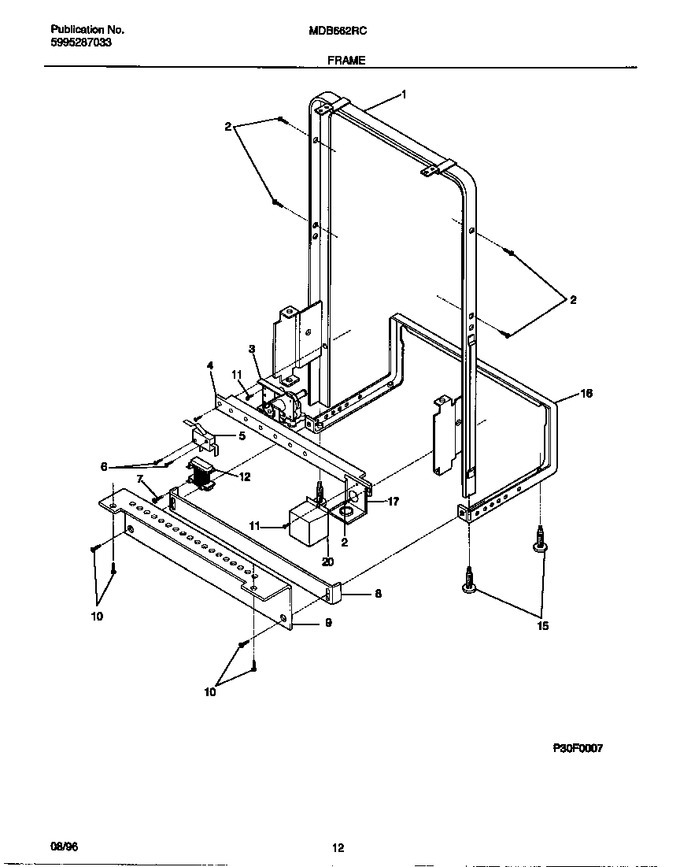

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809972		Front Frame Assy		Appelez-nous	-
2	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
3	5303303957		Valve-water		Appelez-nous	-
4	5303286368		Brace-front		Appelez-nous	-
5	154144601		Switch-float		Appelez-nous	-
6	154201001		Screw-float Switch, (2)		Appelez-nous	-
7	5300804672		Screw-relay		Appelez-nous	-
8	5300809303		Toeplate-adjustable		Appelez-nous	-
9	5300809765		Toeplate				$ 58.70
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	134154100		Screw-10-32 X 3/8   (Replaces: 154200701)				$ 13.46
12	5303351059		Relay-motor				$ 8.35
15	154026101		Screw-leveling		Appelez-nous	-
16	5303211181		Frame-rear		Appelez-nous	-
17	154112901		Bracket-junction Box		Appelez-nous	-
20	154128301		Cover-junction Box		Appelez-nous	-
*40530	5300807373		Washer		Appelez-nous	-
*40531	154200601		Screw-10-16 X 3/8				$ 7.98
