SELECT A DIAGRAM
01 - Cover

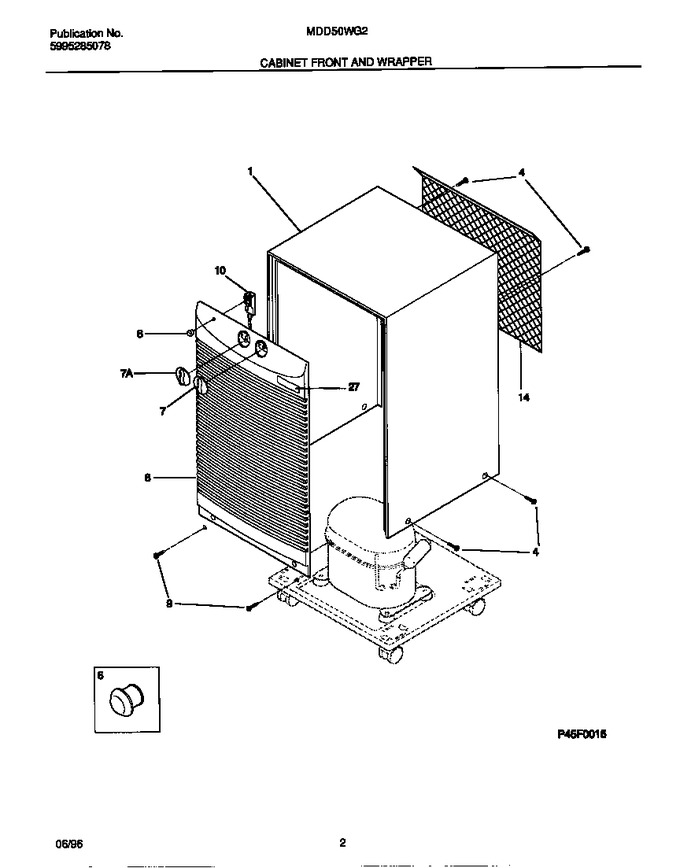

02 - Cabinet Front And Wrapper
03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303309857 | Cabinet |
|
- | |||||
| 4 | 5303015427 | Screw, Truss Head, 8-18ab X 0.47, Square Drive |
|
- | |||||
| 6 | 08012705 | Lens, Lamp, Amber |
|
- | |||||
| 7 | 327300704 | Knob-control, Fan |
|
- | |||||
| 7 | 327300703 | Knob-control, Humidistat |
|
- | |||||
| 8 | 327602103 | Panel, Cabinet Front |
|
- | |||||
| 9 | 5303271346 | Screw, Truss Head, 8-18ab X 0.75 |
|
- | |||||
| 10 | 5303925261 | Light-indicator |
|
- | |||||
| 14 | 3015194 | Grille-rear |
|
- | |||||
| 27 | 327300006 | Nameplate |
|
- |
