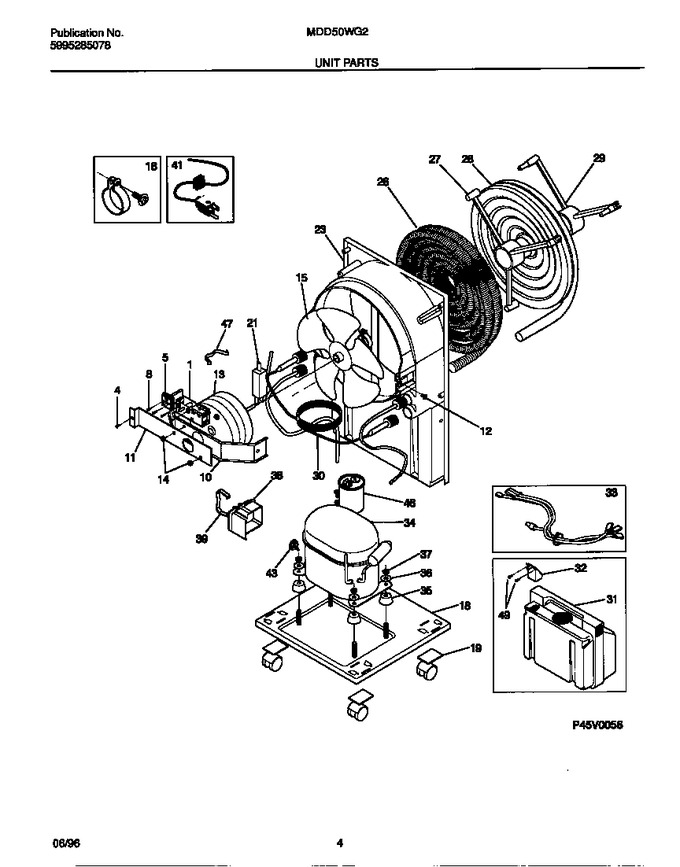

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296823		Control-humidistat				$ 142.17
4	5303015427		Screw, Truss Head, 8-18ab X 0.47, Square Drive		Appelez-nous	-
5	5303012345		Switch-on/off				$ 65.94
8	5303007620		Screw				$ 9.31
9	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
10	5303296828		Bracket-motor		Appelez-nous	-
11	5303296829		Bracket-mounting		Appelez-nous	-
12	3002801		Screw		Appelez-nous	-
13	5303307853		Motor-fan		Appelez-nous	-
14	08007481		Nut				$ 5.81
15	5308016448		Fan Blade		Appelez-nous	-
16	5303303699		Clamp		Appelez-nous	-
18	5303303502		Base Plate, With Casters		Appelez-nous	-
19	5303275278		Caster				$ 30.40
21	5308016437		Switch-auto Shut Off, Bucket				$ 41.55
23	5303303501		Housing-fan		Appelez-nous	-
26	5303320381		Condenser		Appelez-nous	-
27	08016455		Clamp-evaporator Inner		Appelez-nous	-
28	5303320388		Evaporator, With Clamps		Appelez-nous	-
29	08016454		Clamp-evaporator Outer		Appelez-nous	-
30	3203179		Capillary Tube		Appelez-nous	-
31	5303305671		Bucket, With Float		Appelez-nous	-
32	5303272520		Float		Appelez-nous	-
33	5303320539		Harness		Appelez-nous	-
34	5303320390		Compressor		Appelez-nous	-
35	5303001777		Grommet, Compressor		Appelez-nous	-
36	08002956		Washer-compressor		Appelez-nous	-
37	08012645		Nut-compressor		Appelez-nous	-
38	5303273999		Cover-terminal		Appelez-nous	-
39	5303274000		Strap-cover		Appelez-nous	-
41	5303279151		Cord-electric Power		Appelez-nous	-
43	5303320378		Overload Protector		Appelez-nous	-
46	5303001902		Capacitor		Appelez-nous	-
47	327100001		Clip-switch		Appelez-nous	-
49	5303296826		Clip-float, (2)		Appelez-nous	-
