SELECT A DIAGRAM
01 - Cover

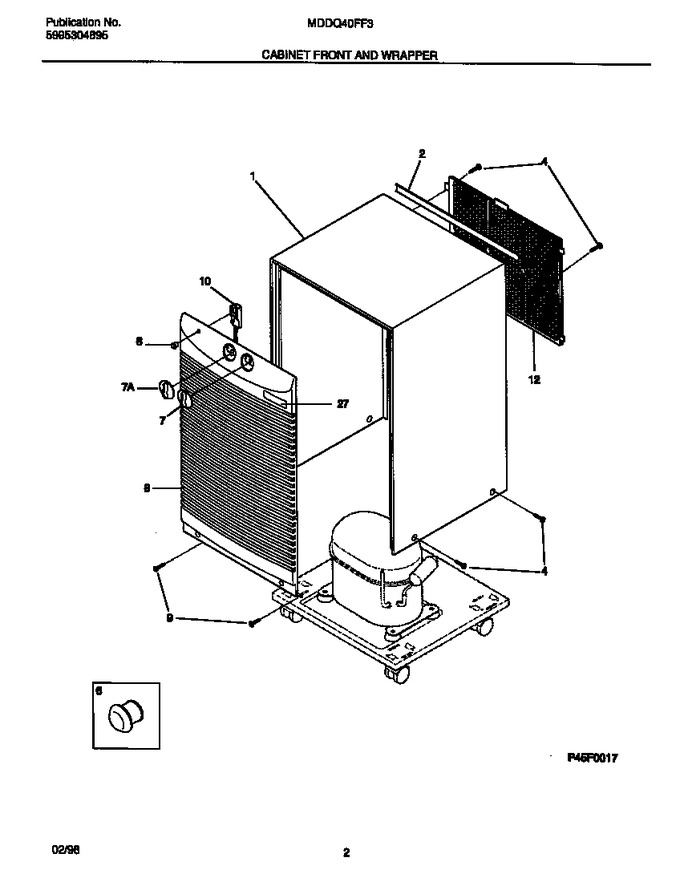

02 - Cabinet Front And Wrapper
03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303325189 | Cabinet |
|
- | |||||
| 2 | 3002958 | Trim |
|
- | |||||
| 4 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 7 | 327300704 | Knob-control, Fan |
|
- | |||||
| 7 | 327300703 | Knob-control, Humidistat |
|
- | |||||
| 8 | 327602111 | Panel,cabinet Front |
|
- | |||||
| 9 | 5303271346 | Screw, Truss Head, 8-18ab X 0.75 |
|
- | |||||
| 10 | 327101701 | Light-indicator |
|
- | |||||
| 12 | 327350601 | Filter |
|
- | |||||
| 27 | 327300005 | Nameplate |
|
- |
