SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper

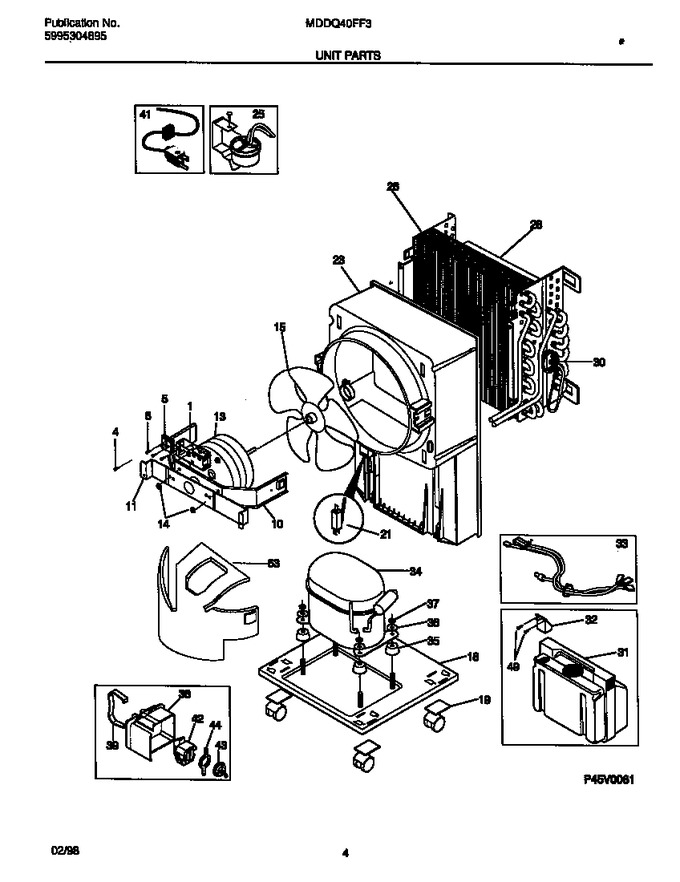

03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296823		Control-humidistat				$ 142.17
4	3017805		Screw, 8, 18ab X 3/8		Appelez-nous	-
5	5303012345		Switch-on/off				$ 65.94
8	5303007620		Screw				$ 9.31
10	327650901		Bracket-motor		Appelez-nous	-
11	327350001		Bracket, Cross		Appelez-nous	-
13	5304403958		Motor-fan,2 Speed				$ 313.64
14	08007481		Nut				$ 5.81
15	327650102		Fan Blade,with Clamp		Appelez-nous	-
18	5303303502		Base Plate, With Casters		Appelez-nous	-
19	5303275278		Caster				$ 30.40
21	5308016437		Switch-auto Shut Off, Bucket				$ 41.55
23	327301603		Housing-fan		Appelez-nous	-
25	5304402782		Thermostat-defrost		Appelez-nous	-
26	327650607		Condenser		Appelez-nous	-
28	327650711		Evaporator		Appelez-nous	-
30	5308017120		Capillary Tube		Appelez-nous	-
31	327651104		Bucket,with Float		Appelez-nous	-
32	5303272520		Float		Appelez-nous	-
33	327354501		Harness,2 Speed		Appelez-nous	-
34	5303321261		Compressor		Appelez-nous	-
35	5303001777		Grommet, Compressor		Appelez-nous	-
36	08002956		Washer-compressor		Appelez-nous	-
37	08012645		Nut-compressor		Appelez-nous	-
38	5303273999		Cover-terminal		Appelez-nous	-
39	5303274000		Strap-cover		Appelez-nous	-
41	5303279151		Cord-electric Power		Appelez-nous	-
42	216594300		Relay   (Replaces: 3204486)				$ 28.92
43	5303273996		Overload Protector				$ 66.05
44	5303273997		Clip-overload		Appelez-nous	-
49	5303296826		Clip-float, (2)		Appelez-nous	-
*19800	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
*19801	5303290357		Strainer		Appelez-nous	-
