SELECT A DIAGRAM

01 - Glass Cartridge


02 - Grill Cartridge

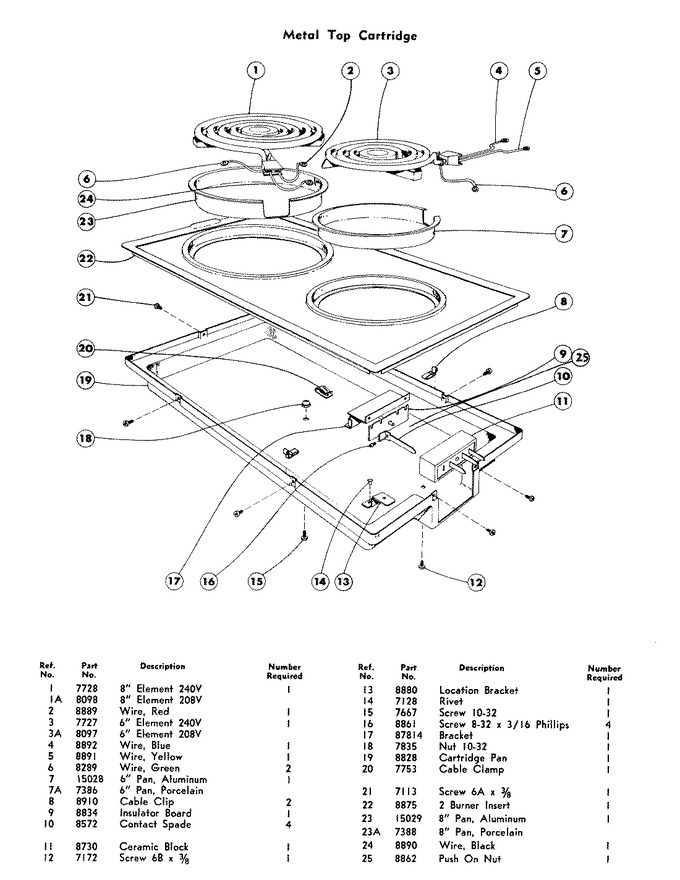

03 - Metal Top Cartridge


04 - Parts List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M21MD		Burner Element 240v   (Replaces: 707728)			Immediately	$ 44.96
2	Y708889		Wire, Red		Appelez-nous	-
3	Y707727		Burner (6``)		Appelez-nous	-
4	708892		Wire Blue		Appelez-nous	-
5	Y708891		Wire Yellow		Appelez-nous	-
6	708289		Wire-green		Appelez-nous	-
7	Y715028		Pan, Aluminum		Appelez-nous	-
8	Y708910		Clip		Appelez-nous	-
9	708834		Insulator, Contact Spade				$ 13.49
10	Y708572		Spade, Contact			Immediately	$ 11.34
11	WPY708730		Block, Terminal   (Replaces: Y708730)			Immediately	$ 87.44
12	WP59002061		Screw   (Replaces: Y707172)				$ 6.98
13	708880		Location Bracket		Appelez-nous	-
14	WP210720		Rivet, Jar Lid   (Replaces: Y707128)				$ 12.14
15	707667		Screw		Appelez-nous	-
16	WP488234		Screw   (Replaces: 708861)				$ 6.07
17	Y787814		Bracket		Appelez-nous	-
18	707835		Nut Acorn		Appelez-nous	-
19	708828		Cartridge Pan				$ 334.07
20	707753		Clamp,cable		Appelez-nous	-
21	WPW10253196		Screw   (Replaces: Y707113)				$ 3.76
22	WP2002F208-50		Insert Top   (Replaces: Y708875)				$ 188.34
23	715878		Pan, Aluminum   (Replaces: 715029)			Immediately	$ 21.16
24	Y708890		Wire, Black		Appelez-nous	-
25	Y708862		Nut, Speed				$ 13.08

    View Diagram in Separate Window       Print Part List
