Diagram # Part Number Description Series Availability Ships Price Add to Cart
7 708833 Tube, Drain Appelez-nous -
7 708935 Drain Tube Appelez-nous -
8 708909 Gasket Appelez-nous -
9 708934 Nut Appelez-nous -
10 701629 Transformer Appelez-nous -
10 708932 Grommet Appelez-nous -
11 Y715120 Receptacle Special Order $ 24.18

15 707116 Screw Appelez-nous -
21 WP7101P126-60 Screw   (Replaces: Y707170) In-Stock Immediately $ 6.85

22 WP59002061 Screw   (Replaces: Y707172) Special Order $ 6.98

25 708263 Cover, Exhauster Appelez-nous -
26 708653 Cover, Wiring Appelez-nous -
28 708533 End Cap Appelez-nous -
29 707161 Nut Appelez-nous -
30 707346 Screw Appelez-nous -
32 701819 Handy Box Appelez-nous -
33 Y703663 Knob, Timer Special Order $ 21.03

34 702225 Cover, Handy Box Appelez-nous -
35 708658 Grommet Appelez-nous -
36 WPY707702 Locknut   (Replaces: Y707702) In-Stock Immediately $ 6.26

38 Y707402 Screw Appelez-nous -
39 707407 Screw Special Order $ 6.42

40 Y707395 Isolator Motor Appelez-nous -
41 Y707393 Band, Motor Appelez-nous -
42 708280 Strip, Foam Appelez-nous -
43 707767 Cap, Connector Appelez-nous -
44 Y707758 Conduit Appelez-nous -
45 707704K Motor   (Replaces: Y707704) In-Stock Immediately $ 352.01

46 WPY707985 Wheel, Blower   (Replaces: Y707985) In-Stock Immediately $ 145.55

47 708082 Caution Label Appelez-nous -
48 WP707929 Filter, Grease   (Replaces: 707929) In-Stock Immediately $ 44.51

49 708232 Grease Box Appelez-nous -
50 708947 Clip, Ground Appelez-nous -
51 708308 Instruction Label Appelez-nous -
52 708238 Door Knob Appelez-nous -
53 WP7101P072-60 Screw 10-24--3/8   (Replaces: Y708311) Special Order $ 6.77

54 708204 Door Appelez-nous -
55 708111 Cleaning Label Appelez-nous -
56 708876 Serial Plate Appelez-nous -
57 WPY707869 Jar, Drain   (Replaces: Y707869) Special Order $ 61.43

58 Y707870 Lid, Jar Appelez-nous -
59 708824 Nut Appelez-nous -
60 WP7112P004-60 Thermostat Bulb Clip   (Replaces: Y707324) In-Stock Immediately $ 11.07

62 Y708236 Oven Light Receptacle Appelez-nous -
63 8009 Bulb, Oven (40 Watt Brass)   (Replaces: Y707319) In-Stock Immediately $ 16.80

64 708736 Tinnerman Appelez-nous -
65 708250 Insulation, Oven Wrap Appelez-nous -
66 708251 Insulation, Oven Back Appelez-nous -
67 708555 Trim Side Left Appelez-nous -
68 708361 Bumper, Button Appelez-nous -
69 708939 Bushing Appelez-nous -
70 708556 Trim Bottom Appelez-nous -
71 708686 Trim Bracket Appelez-nous -
72 WP210720 Rivet, Jar Lid   (Replaces: Y707128) Special Order $ 12.14

73 708735 U-clip Appelez-nous -
74 DA81-08981A Hinge, Door   (Replaces: 702112) Special Order $ 385.18

75 715061 Front Closure Appelez-nous -
76 708278 Screw Appelez-nous -
77 708279 Hex Nut Appelez-nous -
78 708762 Instruction Label Appelez-nous -
79 708859 Wiring Label Appelez-nous -
80 708614 Door Frame Appelez-nous -
81 708616 Black Glass Appelez-nous -
83 708252 Insulation, Oven Door Appelez-nous -
84 707082 Grommet Appelez-nous -
85 707551 Catch, Door Appelez-nous -
86 708734 Clip, Gasket Appelez-nous -
88 708554 Trim Side , Right Appelez-nous -
89 715063 Gasket, Door Appelez-nous -
90 Y708594 Door Handle Appelez-nous -
91 708825 Screw Appelez-nous -
93 708619 Switch Lite Appelez-nous -
94 708234 Rack Oven Appelez-nous -
95 708557 Rack Support Appelez-nous -
97 WPY700854 Knob, Infinite Switch   (Replaces: Y707697) In-Stock Immediately $ 23.22

98 Y707036 Switch, Infinite Appelez-nous -
99 WP3188425 Gasket, Switch   (Replaces: 707990) Special Order $ 82.61

101 708538 Control Panel Appelez-nous -
103 WP489128 Screw   (Replaces: Y707341) Special Order $ 9.79

104 708618 Outlet Switch For Fan Appelez-nous -
105 708253 Insulation Appelez-nous -
106 Y708267 Oven Element Appelez-nous -
107 708590 Escutcheon Appelez-nous -
108 770107 Bezel, Timer Appelez-nous -
108 770106 Knob, Clock Appelez-nous -
108 770105 Glass Appelez-nous -
108 708694 Clock/timer Appelez-nous -
109 708620 Pilot Light, Oven Appelez-nous -
110 708665 Element, Broil Appelez-nous -
111 Y708585 Support Bracket Appelez-nous -
112 708704 Thermostat Appelez-nous -
113 708305 Trim, Knob T-stat Appelez-nous -
115 Y708707 Thermostat Knob Appelez-nous -
116 708534 End Cap (right) Appelez-nous -
119 708839 Bracket Appelez-nous -
120 708646 Cover Plate Appelez-nous -
121 Y708558 Receptacle Contacts Special Order $ 23.08

122 787717 Air Grill Appelez-nous -
123 787819 Range Top Appelez-nous -
124 787699 Wrap Around Appelez-nous -
125 786715 Cover, Motor Access Appelez-nous -
126 787733 Vent Tube Appelez-nous -
127 786719 Inlet Flange Appelez-nous -
128 Y786315 Scroll Appelez-nous -
129 786720 Cover, Motor Appelez-nous -
130 787722 Plenum Appelez-nous -
131 787713 Oven Liner+ Appelez-nous -
132 787817 Pan (right) Appelez-nous -
133 787751 Door, Access Appelez-nous -
134 787712 Liner, Oven Door Appelez-nous -
135 708854 Box, Burner Appelez-nous -
136 787716 Feature Panel Appelez-nous -
137 787816 Pan (left) Appelez-nous -
138 787743 Oven Door Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

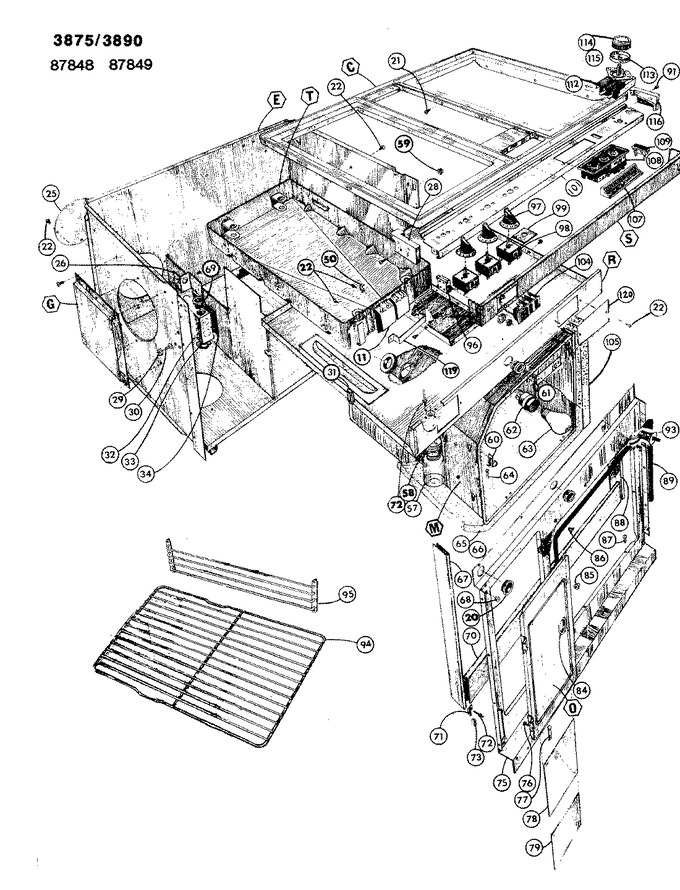

Diagram for 3890ERS
