| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

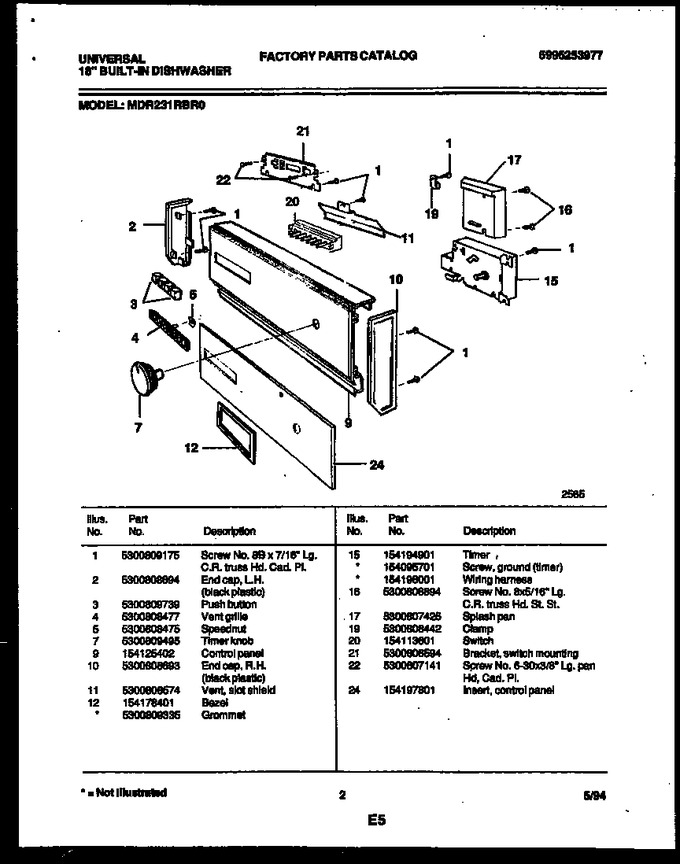

| 1 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 2 | 5300808694 | End Cap, L.h. (black Plastic) |
|
- | |||||
| 3 | 5300809739 | Pushbutton |
|
- | |||||
| 4 | 5300808477 | Vent Grille |
|
- | |||||
| 5 | 5300808475 | Speednut |
|
- | |||||
| 7 | 5300809495 | Timer Knob |
|
$ 80.48 | |||||
| 9 | 154125402 | Control Panel |
|
- | |||||
| 10 | 5300808693 | End Cap, R.h. (black Plastic) |
|
- | |||||
| 11 | 5300808574 | Vent Slot Shield |
|
- | |||||
| 12 | 154178401 | Bezel |
|
- | |||||
| 15 | 154194901 | Timer |
|
$ 188.00 | |||||
| 16 | 5300806894 | Screw No. 8 X 5/16`` Lg. C.r. Truss Hd. St. St. |
|
- | |||||
| 17 | 5300807425 | Splash Pan |
|
- | |||||
| 19 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 20 | 154113601 | Switch |
|
- | |||||
| 21 | 5300806594 | Bracket, Switch Mounting |
|
- | |||||
| 22 | 5300807141 | Screw No. 6-30 X 3/8`` Lg. Pan Hd, Cad. Pl. |
|
- | |||||
| 24 | 154197801 | Insert, Control Panel |
|
- | |||||
| 12A | 5300809335 | Grommet (non-illustrated) |
|
- | |||||
| 15A | 154095701 | Screw, Ground (timer) (non-illustrated) |
|
$ 10.34 | |||||
| 15B | 154198001 | Wiring Harness (non-illustrated) |
|
- |
