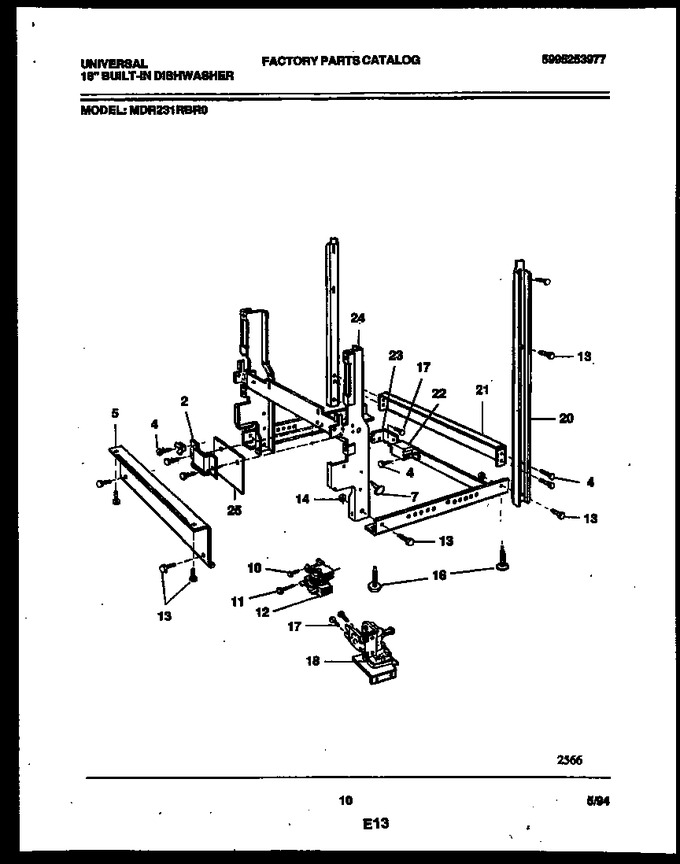

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5300806723		Wire Clamp		Appelez-nous	-
4	5300807001		Screw No. 1/4-20 X 1/2`` Lg. Hex Washer Slotted Hd., Blac		Appelez-nous	-
5	5300807559		Toeplate				$ 31.76
7	5300809711		Insulation Retainer		Appelez-nous	-
10	3018140		Screw No. 8-32 X 1/4`` Lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
11	5300804672		Screw No. 8-32 X 1/4`` Lg. C.r. Oval Hd. Cad. Pl.		Appelez-nous	-
12	5303351059		Motor Relay				$ 8.35
13	5300807001		Screw No. 1/4-20 X 1/2`` Lg. Hex Washer Slotted Hd., Blac		Appelez-nous	-
14	5300804619		Nut		Appelez-nous	-
16	5300809422		Leveler		Appelez-nous	-
17	5300807950		Screw		Appelez-nous	-
18	154195201		Water Inlet Valve				$ 155.40
19	5300807564		Side Base Angle Kit		Appelez-nous	-
20	5300808670		Support Channel		Appelez-nous	-
21	3018150		Rear Brace		Appelez-nous	-
22	08057593		Junction Box Cover		Appelez-nous	-
23	5300807019		Junction Box Bracket		Appelez-nous	-
24	5300809212		Hinge Weld Assembly		Appelez-nous	-
25	5300809144		Wire Shield		Appelez-nous	-
*10076	5304464772		Wire Tie   (Replaces: 5300809418)				$ 10.63
12A	154109801		Shield-relay		Appelez-nous	-
24A	5304464772		Wire Tie (non-illustrated)   (Replaces: 5300809418)				$ 10.63

    View Diagram in Separate Window       Print Part List
