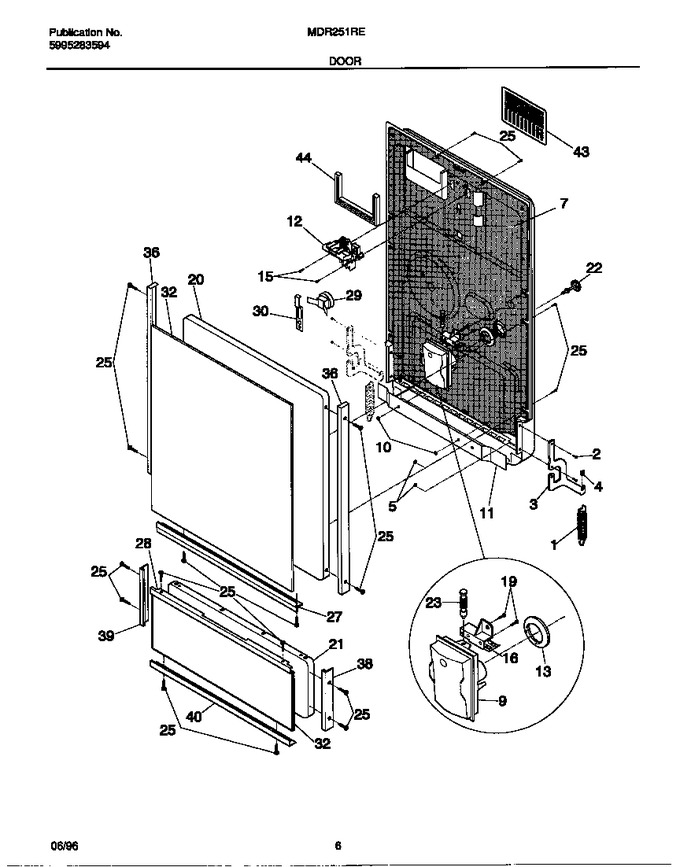

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Detergent Cup
04 - Door
05 - Tub
06 - Motor & Pump
07 - Frame
08 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154237401 | Spring-door,(2) |
|
$ 67.24 | |||||
| 2 | 154093301 | Screw-arm Assy |
|
Immediately | $ 2.12 | ||||
| 3 | 154221401 | Cover-arm (not Illustrated) |
|
- | |||||
| 3 | 5303298513 | Pin-arm (not Illustrated) |
|
$ 39.98 | |||||
| 3 | 5303270031 | Arm Assy, Rh & Lh |
|
$ 79.75 | |||||
| 4 | 5300805884 | Pad-spring |
|
- | |||||
| 5 | 154079601 | Nut-arm Assy |
|
$ 0.41 | |||||
| 7 | 5303318538 | Door-inner Assy |
|
- | |||||
| 9 | 5300806753 | Body-dispenser |
|
$ 69.93 | |||||
| 10 | 154026601 | Speednut-baffle |
|
$ 25.67 | |||||
| 11 | 154221101 | Baffle Seal |
|
$ 78.12 | |||||
| 12 | 154211301 | Handle-latch, Black (not Illustrated) |
|
- | |||||
| 12 | 5304442175 | Latch Assy (Replaces: 154211201) |
|
Immediately | $ 151.49 | ||||
| 13 | 5300805631 | Grommet-rinse Agent |
|
$ 6.29 | |||||
| 15 | 154103702 | Screw-latch Mtg, (2) |
|
$ 13.46 | |||||
| 16 | 5300809782 | Bi-metal-rinse Disp |
|
$ 47.51 | |||||
| 19 | 5300807501 | Screw-bi-metal Assy |
|
- | |||||
| 20 | 5303308615 | Panel-door,galv |
|
$ 77.65 | |||||
| 21 | 5303318023 | Panel-access,galv |
|
- | |||||
| 22 | 5303943094 | Plug-fill |
|
- | |||||
| 23 | 5300806757 | Plunger |
|
$ 49.30 | |||||
| 25 | 154419403 | Screw,8a X .375`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 27 | 5300809913 | Trim-door,chrome ,bottom |
|
- | |||||
| 28 | 5300808471 | Trim-access Top,chrome |
|
$ 27.35 | |||||
| 29 | 5300808956 | Thermostat |
|
$ 3.78 | |||||
| 30 | 5300809097 | Retainer-thermostat |
|
- | |||||
| 32 | 5303318024 | Insert-access,wht/clr |
|
$ 36.96 | |||||
| 32 | 5300808756 | Insert-door/access,alm/blk |
|
$ 120.17 | |||||
| 32 | 5303318022 | Insert-door,wht/clr |
|
- | |||||
| 36 | 5303943080 | Trim-door,chrome ,rh & Lh |
|
- | |||||
| 38 | 5303272124 | Trim-access Panel,chrome ,rh |
|
$ 46.41 | |||||
| 39 | 5303272125 | Trim-access Panel,chrome ,lh |
|
$ 45.31 | |||||
| 40 | 154043802 | Trim-access, Chrome, Bottom |
|
$ 50.24 | |||||
| 43 | 154229301 | Cover-vent |
|
$ 33.08 | |||||
| 43 | 154229401 | Screw-vent Cover, (2) (not Illustrated) |
|
- | |||||
| 44 | 154221001 | Gasket,vent Cover |
|
$ 43.47 | |||||
| *48245 | 218781101 | Screw-8-18 X 5/8 (Replaces: 154026501) |
|
$ 15.60 | |||||
| *48246 | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 |
