SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Detergent Cup


04 - Door


05 - Tub


06 - Motor & Pump


07 - Frame


08 - Racks

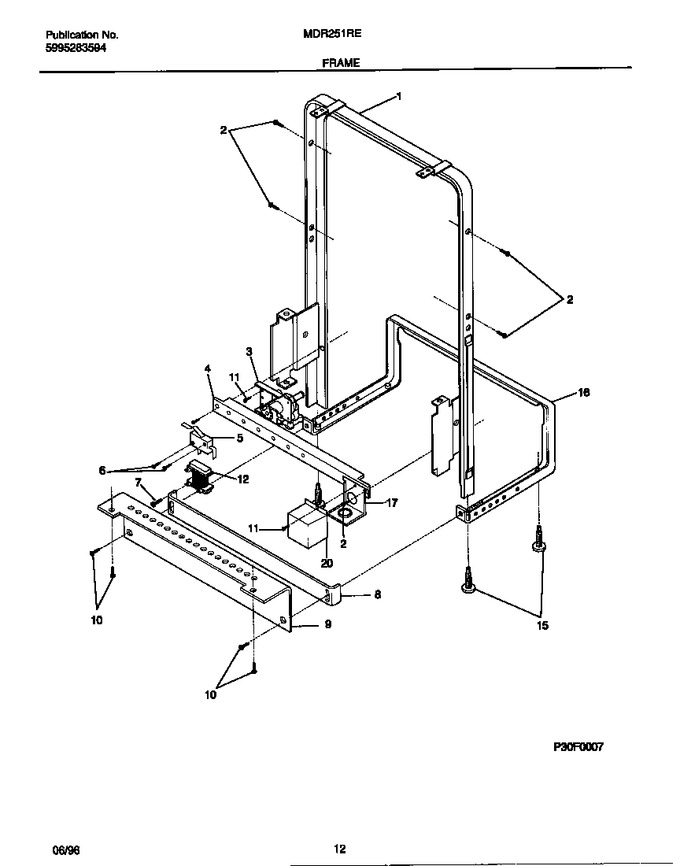

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154218801		Front Frame Assy		Appelez-nous	-
2	5300807270		Screw, Top, (6)				$ 6.72
3	154637401		Valve-water   (Replaces: 154219602)			Immediately	$ 21.36
4	154219101		Brace-front		Appelez-nous	-
4	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
5	154773201		Bracket-float Switch (not Illustrated)   (Replaces: 154209801)			Immediately	$ 55.29
5	154225501		Switch,float				$ 84.68
6	154200601		Screw-10-16 X 3/8				$ 7.98
7	5300804672		Screw-relay		Appelez-nous	-
8	154220802		Toeplate-adjustable		Appelez-nous	-
9	154220702		Toeplate		Appelez-nous	-
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	134154100		Screw-10-32 X 3/8   (Replaces: 154200701)				$ 13.46
12	5303351059		Relay-motor				$ 8.35
15	154210902		Screw-leveling		Appelez-nous	-
16	154219001		Frame-rear		Appelez-nous	-
17	154112901		Bracket-junction Box		Appelez-nous	-
20	154128301		Cover-junction Box		Appelez-nous	-
*48251	5300807373		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
