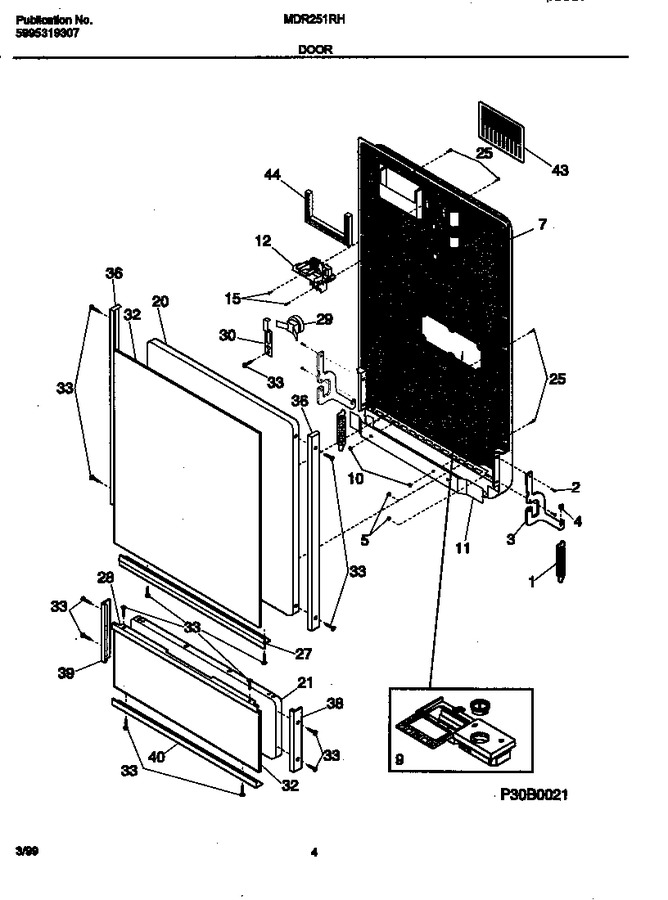

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154237401		Spring-door,(2)				$ 67.24
2	154093301		Screw,arm Assy ,(4)			Immediately	$ 2.12
3	5303270031		Arm Assy, Rh & Lh				$ 79.75
4	5300805884		Pad-spring		Appelez-nous	-
5	5300808470		Nut, 10-24		Appelez-nous	-
7	154352201		Door-inner Assy				$ 175.09
9	154574401		Dispenser-det/rinse Aid   (Replaces: 154230101)			Immediately	$ 102.77
10	154026601		Speednut-baffle				$ 25.67
11	154221101		Baffle Seal				$ 78.12
12	5304442175		Latch Assy   (Replaces: 154316201)			Immediately	$ 151.49
15	154103702		Screw-latch Mtg, (2)				$ 13.46
20	5303308615		Panel-door,galv				$ 77.65
21	5303318023		Panel-access,galv		Appelez-nous	-
25	5300809055		Screw, Cr Truss S.s., 8 .438				$ 1.21
27	5300809913		Trim-door,chrome ,bottom		Appelez-nous	-
28	5300808471		Trim-access Top,chrome				$ 27.35
29	5300808956		Thermostat				$ 3.78
30	5300809097		Retainer-thermostat		Appelez-nous	-
32	5300808756		Insert-door/access,alm/blk				$ 120.17
32	5303318022		Insert-door,wht/clr		Appelez-nous	-
32	5303318024		Insert-access,wht/clr				$ 36.96
32	3202761		Insert-access, Alm/blk		Appelez-nous	-
33	5303318540		Screw-door Trim, Phillips, 8-18		Appelez-nous	-
36	5303943080		Trim-door,chrome ,rh & Lh		Appelez-nous	-
38	5303272124		Trim-access Panel,chrome ,rh				$ 46.41
39	5303272125		Trim-access Panel,chrome ,lh				$ 45.31
40	154043802		Trim-access, Chrome, Bottom				$ 50.24
43	154229301		Cover-vent				$ 33.08
44	154221001		Gasket,vent Cover				$ 43.47
51	154320301		Clamp-wire,drip Loop				$ 62.69
*53563	154221401		Cover-arm		Appelez-nous	-
*53564	5303298513		Pin-arm				$ 39.98
*53565	154294701		Screw,7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
*53566	154316303		Handle-latch,black		Appelez-nous	-
*53567	154229401		Screw-vent Cover,(2)		Appelez-nous	-
*53568	154200601		Screw-10-16 X 3/8				$ 7.98
