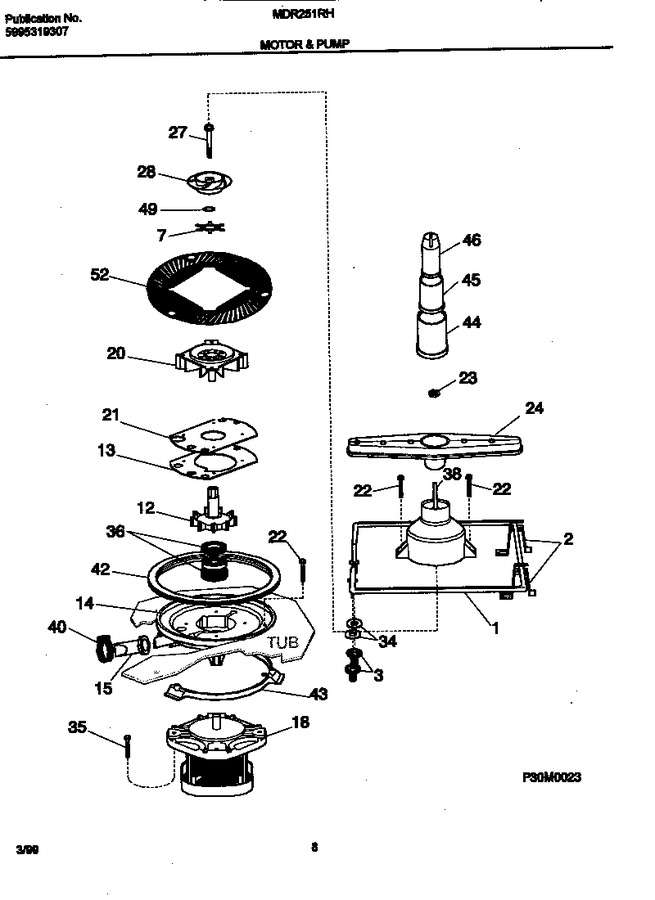

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154220901		Heater				$ 214.31
2	154322501		Bracket-heater		Appelez-nous	-
3	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
7	5300809920		Macerator				$ 49.19
12	5300809909		Impeller-lower				$ 71.56
13	5300807709		Gasket-pump				$ 54.26
14	154292102		Housing-pump		Appelez-nous	-
15	5300809937		Check Valve				$ 74.71
18	154231601		Motor		Appelez-nous	-
20	5300809921		Plate-spacer				$ 12.39
21	5300807884		Plate-pump				$ 48.51
22	154200201		Screw-pump Housing		Appelez-nous	-
23	154234301		Nut-spray Arm				$ 51.32
24	154219201		Spray Arm-lower				$ 196.77
27	5300806353		Screw-upper Impeller				$ 12.06
28	5300809918		Impeller-upper				$ 83.45
34	154289801		Shield-heater Terminal				$ 7.33
35	154200901		Screw-motor Mtg				$ 14.39
36	5300803903		Seal Kit				$ 109.86
38	154158402		Diffuser				$ 96.35
40	154611101		Clamp-hose   (Replaces: 154106801)				$ 12.05
42	154292001		Gasket-pump				$ 31.10
43	5300809590		Clamp,pump				$ 47.93
44	154122502		Base-tower				$ 38.90
45	154122601		Middle-tower				$ 55.07
46	154122701		Tip-tower		Appelez-nous	-
49	154122701		Tip-tower		Appelez-nous	-
52	154291902		Plate-strainer		Appelez-nous	-
*53571	154348401		Clamp, Drain Pump   (Replaces: 154247301)				$ 32.96
*53572	154234401		Hose,connector				$ 68.68
*53573	154103701		Screw,truss Head Torx ,10 .875 ,plate		Appelez-nous	-
*53574	154200601		Screw-10-16 X 3/8				$ 7.98
*53575	154247401		Clamp, Connector Pump		Appelez-nous	-
