SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack

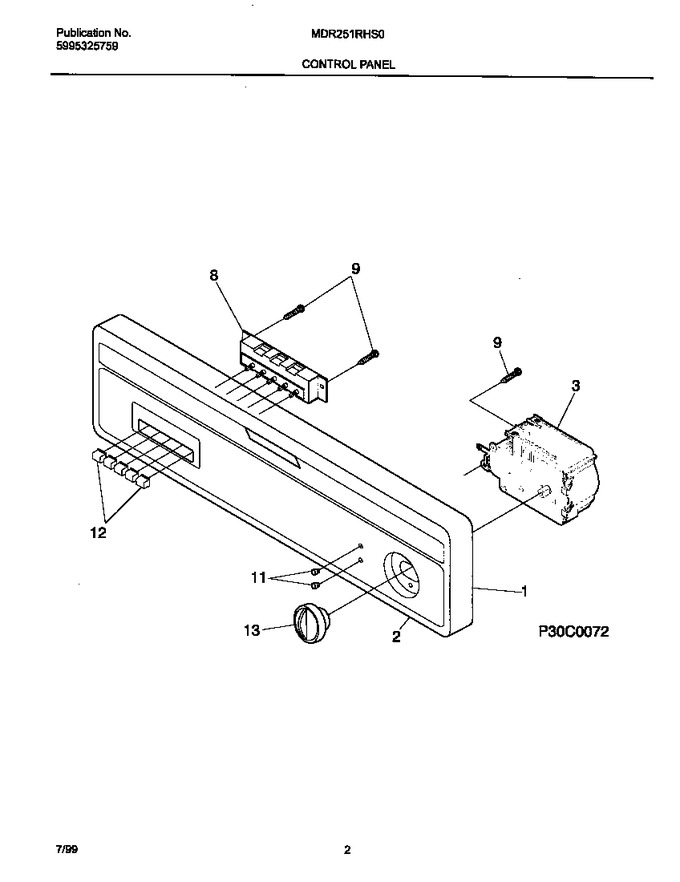

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154357602		Panel-control,white				$ 170.31
2	154233002		Insert-control Pnl		Appelez-nous	-
3	154349902		Timer				$ 409.55
8	154220401		Switch-selector,5 Button		Appelez-nous	-
9	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
11	5300809036		Lens-light				$ 20.90
12	154236502		Pushbutton,white ,(2)				$ 52.03
13	154239302		Knob-timer, White				$ 57.54
*68200	154242201		Shield-switch		Appelez-nous	-
*68201	5300809144		Shield - Wire		Appelez-nous	-
*68202	154351801		Harness-wiring,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
