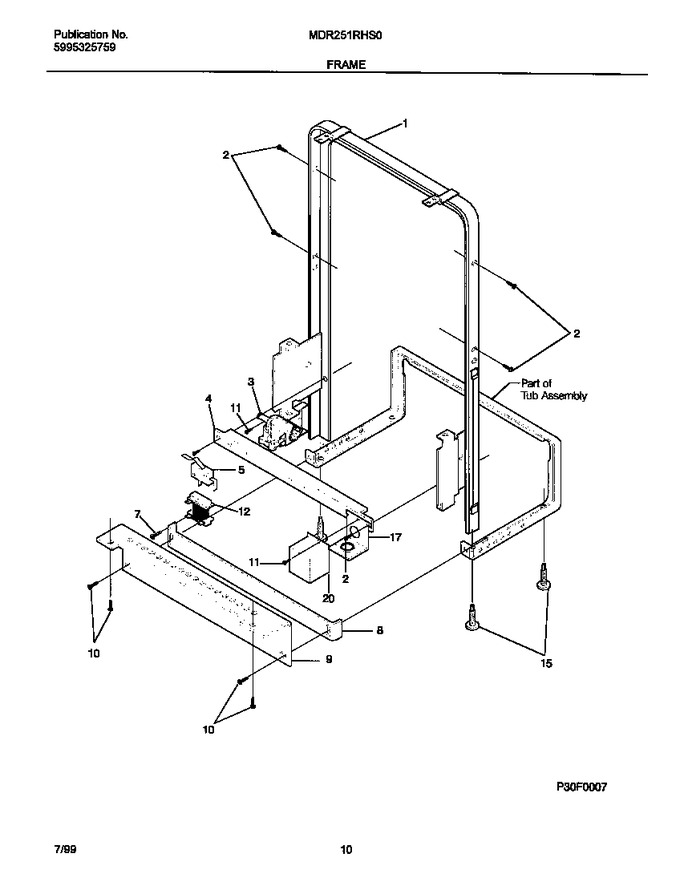

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154218801		Front Frame Assy		Appelez-nous	-
2	154200601		Screw-10-16 X 3/8				$ 7.98
3	154637401		Valve-water   (Replaces: 154219602)			Immediately	$ 21.36
4	154219101		Brace-front		Appelez-nous	-
5	154225501		Switch,float				$ 84.68
7	5300804672		Screw-relay		Appelez-nous	-
8	154323602		Toeplate-adjustable		Appelez-nous	-
9	154323702		Toeplate		Appelez-nous	-
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	154294701		Screw,7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
12	5303351059		Relay-motor				$ 8.35
15	154210901		Screw-leveling		Appelez-nous	-
17	154112901		Bracket-junction Box		Appelez-nous	-
20	154128302		Cover-junction Box		Appelez-nous	-
*68215	154773201		Bracket-float Switch   (Replaces: 154209801)			Immediately	$ 55.29
*68216	134154100		Screw-10-32 X 3/8   (Replaces: 154200701)				$ 13.46
*68217	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
*68218	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21

    View Diagram in Separate Window       Print Part List
