View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

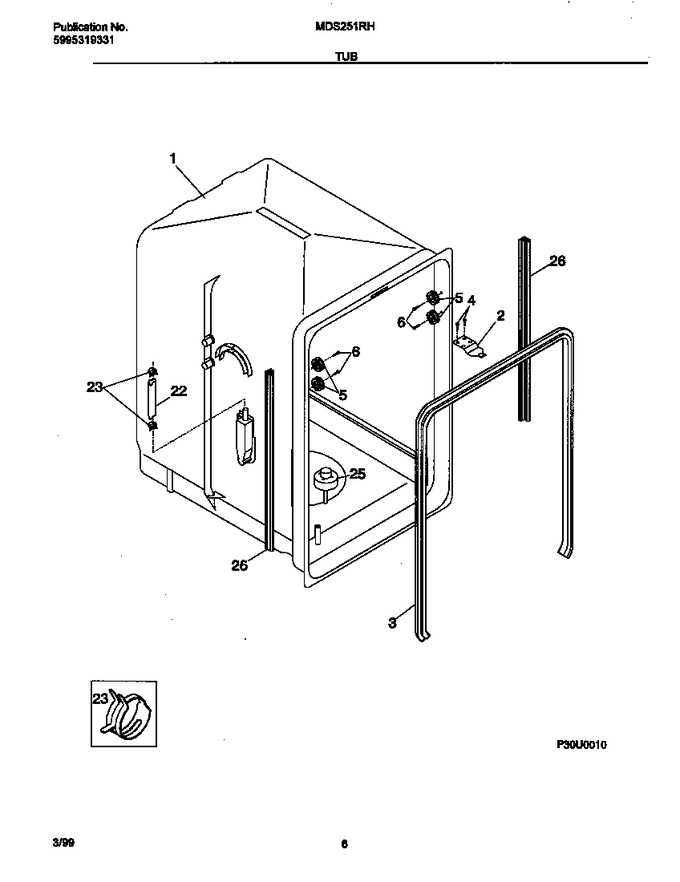

| 1 | 154218701 | Tub Assy W/gasket |
|
- | |||||
| 2 | 154662601 | Strike-door (Replaces: 154211601) |
|
Immediately | $ 39.69 | ||||
| 3 | 8581548276014 | Gasket-tub (Replaces: 154219501) |
|
Immediately | $ 26.30 | ||||
| 4 | 134154100 | Screw-10-32 X 3/8 (Replaces: 154200701) |
|
$ 13.46 | |||||
| 5 | 5304507405 | Roller-tub (Replaces: 154213401) |
|
Immediately | $ 25.79 | ||||
| 6 | 5303943103 | Screw W/washer,(8) |
|
Immediately | $ 17.72 | ||||
| 22 | 5304523457 | Tubing-water Inlet (Replaces: 154239801) |
|
Immediately | $ 14.03 | ||||
| 23 | 5304538466 | Clamp-tubing,(2) (Replaces: 5303318539) |
|
$ 2.31 | |||||
| 25 | 5304532207 | Float (Replaces: 154209701) |
|
Immediately | $ 6.89 | ||||
| 26 | 154242303 | Trim-tub Flange,lh |
|
- | |||||
| 26 | 154242302 | Trim-tub Flange,rh |
|
- | |||||
| *48688 | 154041001 | Screw,plask 1 ,10-10 X 9/16 |
|
- | |||||
| *48689 | 154641601 | Insulation, Tub (Replaces: 154238301) |
|
$ 6.15 | |||||
| *48690 | 154200602 | Screw,10-16 X 3/8 ,hex |
|
$ 10.21 |
