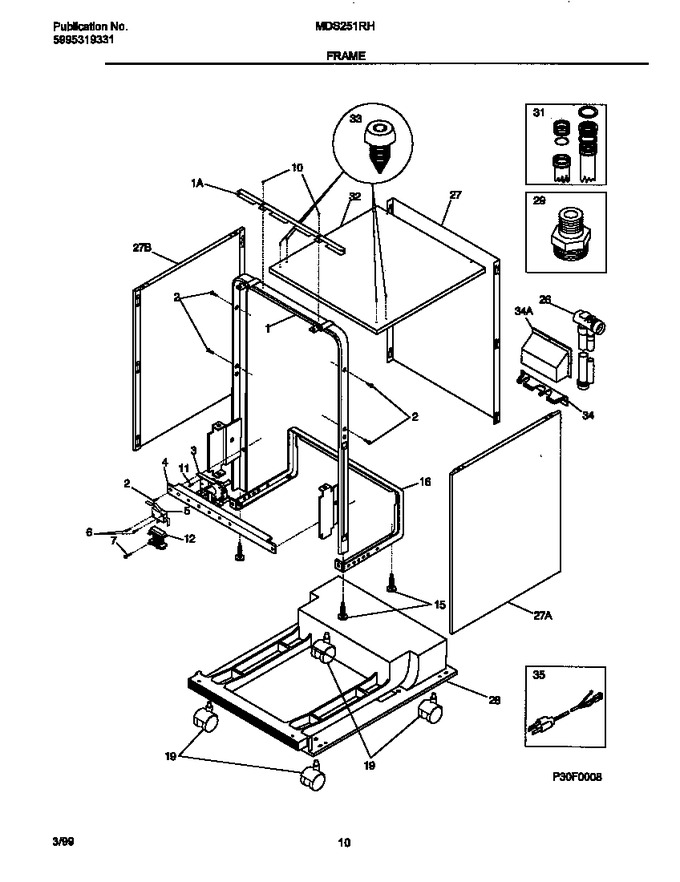

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154218801		Front Frame Assy		Appelez-nous	-
1	154236102		Bracket-front Frame		Appelez-nous	-
2	154200601		Screw-10-16 X 3/8				$ 7.98
3	154637401		Valve-water   (Replaces: 154219602)			Immediately	$ 21.36
4	154219101		Brace-front		Appelez-nous	-
5	154225501		Switch,float				$ 84.68
6	154025901		Screw, Truss Head, 10 X 0.625		Appelez-nous	-
7	5300804672		Screw-relay		Appelez-nous	-
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	154294701		Screw,7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
12	5303351059		Relay-motor				$ 8.35
15	154210901		Screw-leveling		Appelez-nous	-
16	154292701		Frame-rear,assy		Appelez-nous	-
19	154280201		Caster, 30				$ 49.51
26	154187104		Hose & Coupler Assy				$ 203.91
27	154229602		Wrapper,white ,back		Appelez-nous	-
27	154229702		Panel, Side, Rh		Appelez-nous	-
27	154229701		Panel, Side, Lh		Appelez-nous	-
28	154242402		Base And Weight Assy		Appelez-nous	-
29	154242501		Adapter-water Valve				$ 83.53
31	5303304813		Faucet Adapter Assy		Appelez-nous	-
32	154241804		Top,gray		Appelez-nous	-
33	154241701		Screw, Top		Appelez-nous	-
34	154249801		Pocket,upper				$ 31.03
34	154249701		Pocket,lower		Appelez-nous	-
35	154253001		Cord-electric				$ 118.76
*48695	218781101		Screw-8-18 X 5/8   (Replaces: 154026501)				$ 15.60
*48696	134154100		Screw-10-32 X 3/8   (Replaces: 154200701)				$ 13.46
*48697	154773201		Bracket-float Switch   (Replaces: 154209801)			Immediately	$ 55.29
*48698	154243201		Clip,(2)		Appelez-nous	-
*48699	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
*48700	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21
*48701	154242801		Screw, Phillips, 8-18 X 7/16		Appelez-nous	-
*48702	154257901		Clip-cable		Appelez-nous	-
