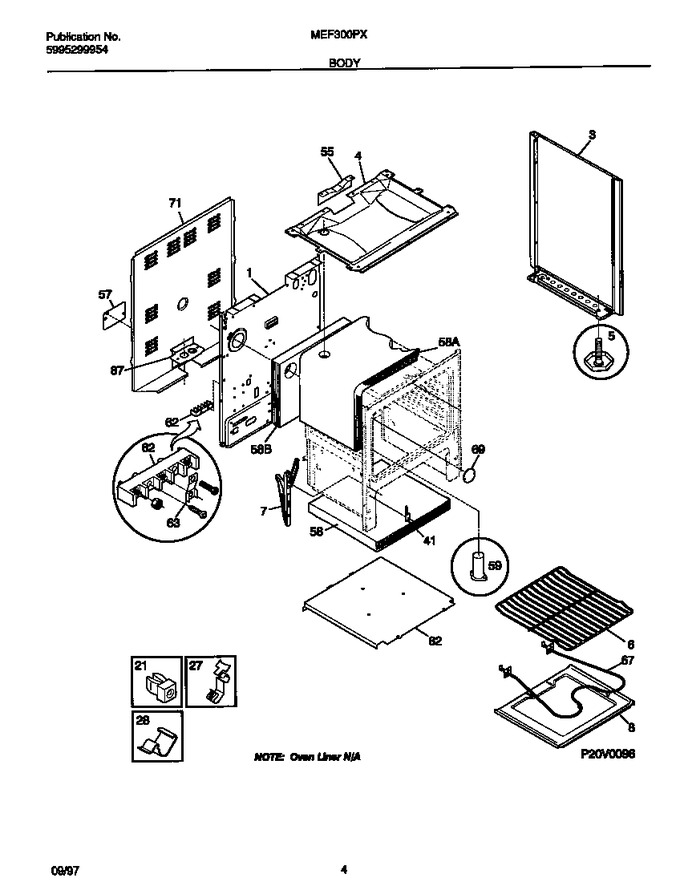

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080801		Back-main		Appelez-nous	-
3	316081028		Panel-bodyside, White, Rh		Appelez-nous	-
3	316081029		Panel-bodyside, White, Lh (not Illustrated)		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
5	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14
5	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5	5303203397		Screw-leveling				$ 14.49
5	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007007		Hinge-oven Door, (2)		Appelez-nous	-
8	3203540		Panel-oven Bottom		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3051367		Clip-wire		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
55	3018607		Cover Plate				$ 10.50
57	316081101		Cover-access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
58	316047707		Insulation,oven Wrapper				$ 150.92
58	316054202		Insulation,oven Back				$ 76.59
59	316073601		Tube, Oven Vent		Appelez-nous	-
62	5303935061		Terminal Block		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
67	316075103		Element-bake   (Replaces: 316075102)			Immediately	$ 42.36
69	3051218		Plate,oven Light		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
*80201	3131903		Bumper				$ 55.36
*80202	3203550		Plug-button			Immediately	$ 15.22
*80203	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*80204	316073400		Plate,weight ,(3)		Appelez-nous	-
*80205	5303051099		Nut, Hex, 10-32		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
