SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

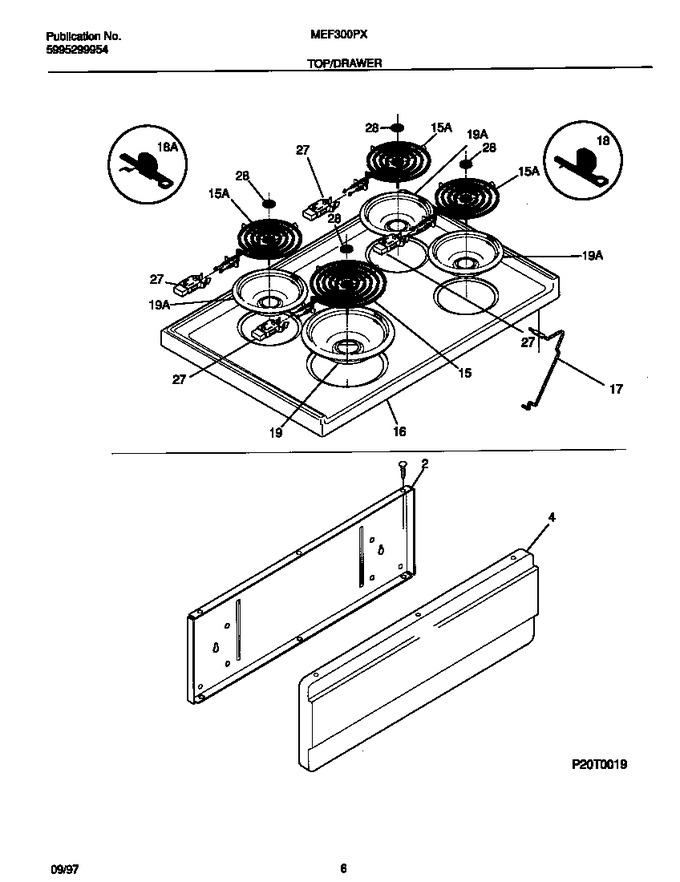

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3131975		Shield-panel		Appelez-nous	-
4	3051201		Panel-dummy, White		Appelez-nous	-
15	316442300		Element-surface,large/8 Inch   (Replaces: 5303015715)			Immediately	$ 59.16
15	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
16	3051379		Main Top, White		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
17	316089500		Screw, 10-16 X .486, Safety Valve, (4) (not Illustrated)				$ 13.46
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048414		Pan-surface Element, Small/6 Inch, Chrome, (2)			Immediately	$ 16.11
19	316048413		Pan-surface Element, Large/8 Inch, Chrome, (2)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
*80206	3131903		Bumper				$ 55.36
*80207	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*80208	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*80209	316105700		Bracket-drawer Panel, Rh		Appelez-nous	-
*80210	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*80211	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28

    View Diagram in Separate Window       Print Part List
