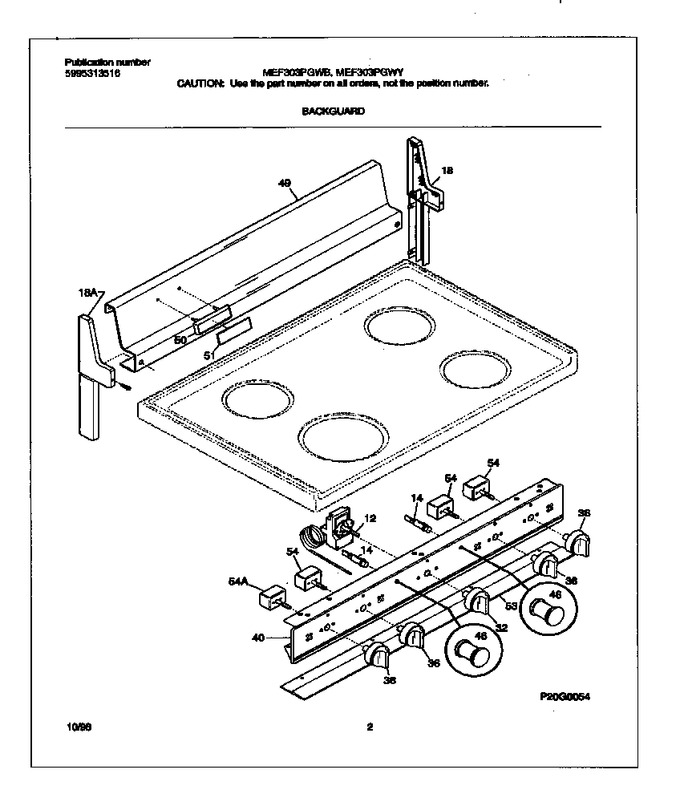

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303210266		Thermostat-oven		Appelez-nous	-
14	316022504		Light-indicator		Appelez-nous	-
18	3202801		End Cap,black ,lh		Appelez-nous	-
18	3202802		End Cap,black ,rh		Appelez-nous	-
32	316102302		Knob-thermostat,black		Appelez-nous	-
36	316102307		Knob-control,white		Appelez-nous	-
40	316086827		Panel-manifold, Black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
49	316073501		Panel-backguard, White		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	5301313767		Switch-8`` Element		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*87360	316002671		Diagram-wiring		Appelez-nous	-
*87361	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*87362	316112500		Template, Anti-tip Bracket				$ 3.55
*87363	316114500		Support-strain Relief		Appelez-nous	-
