SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

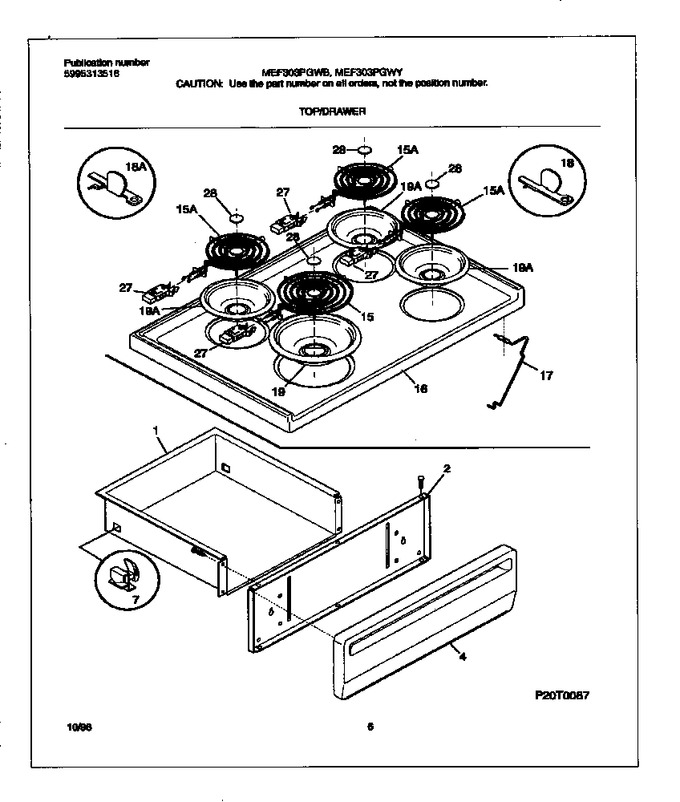

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	3051201		Panel-dummy, White		Appelez-nous	-
15	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
15	316442300		Element-surface,large/8 Inch   (Replaces: 5303015715)			Immediately	$ 59.16
16	3051379		Main Top, White		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19	316048413		Pan-surface Element,chrome ,large/8 Inch,(2)			Immediately	$ 9.85
19	316048414		Pan-surface Element,chrome ,small/6 Inch,(2)			Immediately	$ 16.11
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
*87371	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*87372	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*87373	316105700		Bracket-drawer Panel, Rh		Appelez-nous	-
*87374	316105701		Bracket-drawer Panel, Lh		Appelez-nous	-
*87375	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*87376	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28

    View Diagram in Separate Window       Print Part List
