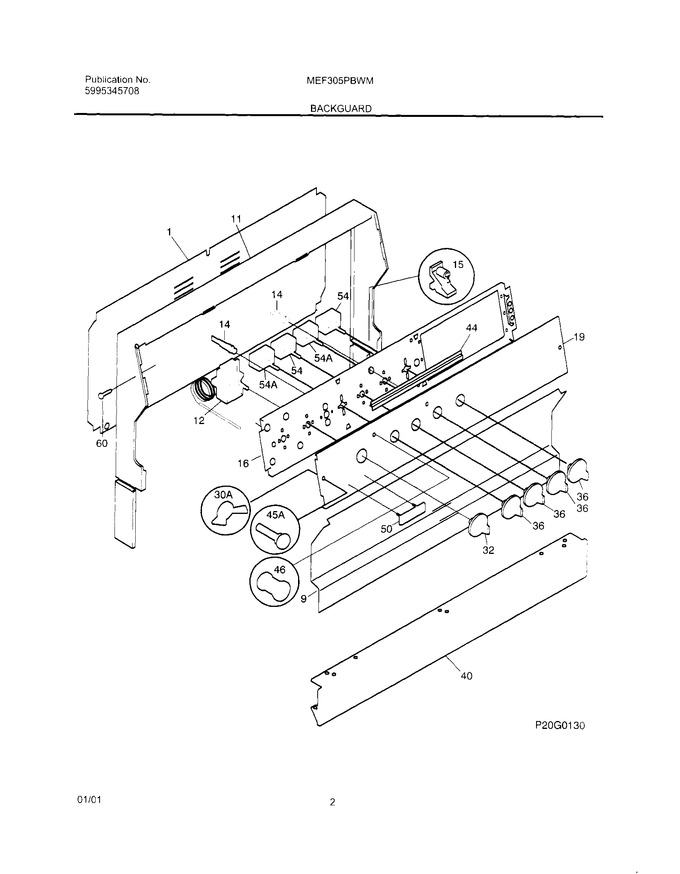

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316133501		Trim-splasher,white ,lower		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
12	316032408		Thermostat-oven,12				$ 355.67
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034120		Panel-control, Metal		Appelez-nous	-
30	316064300		Nut,nylon		Appelez-nous	-
32	316123307		Knob-thermostat,black				$ 40.79
36	316123303		Knob,infinite Switch ,black		Appelez-nous	-
40	316064009		Panel-manifold,black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056902		Bolt-fastener, Nylon		Appelez-nous	-
46	316065801		Lens-light/lamp,indicator ,red		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095420		Nameplate,black		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
54	5303285143		Switch, 8`` Element		Appelez-nous	-
NI	5303272555		Clip-backguard		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
