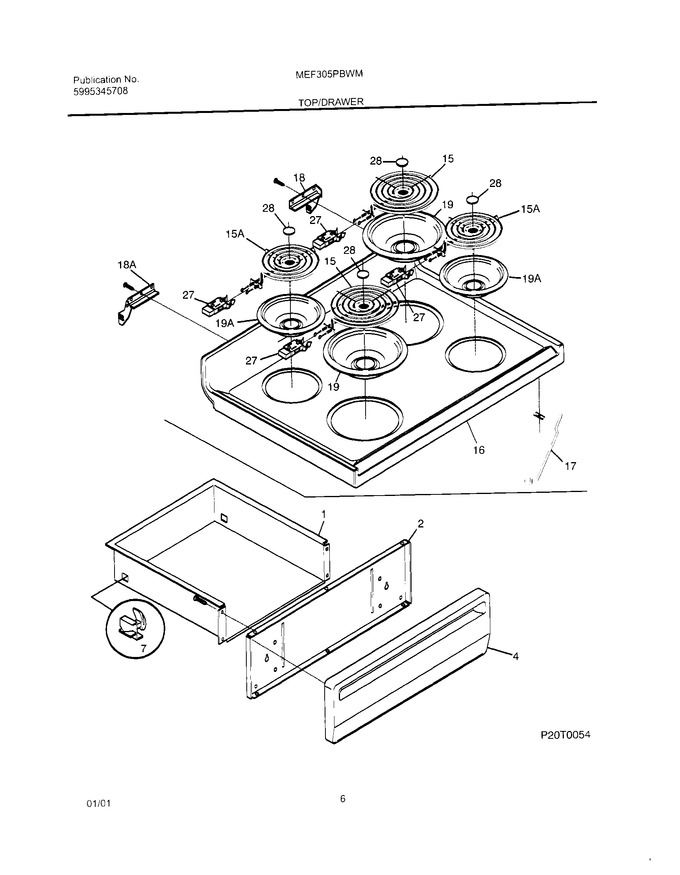

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	5303288582		Shield-drawer,liner ,galv Steel ,front Panel		Appelez-nous	-
4	316084405		Panel-drawer Front,white		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	3051450		Element,surface ,8`` Large		Appelez-nous	-
15	3051449		Element-surface, Small		Appelez-nous	-
16	5303013511		Main Top (white)		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
19	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
44	3131903		Bumper				$ 55.36
NI	316001731		Wiring Harness,surface Element		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	5308014215		Screw				$ 2.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
