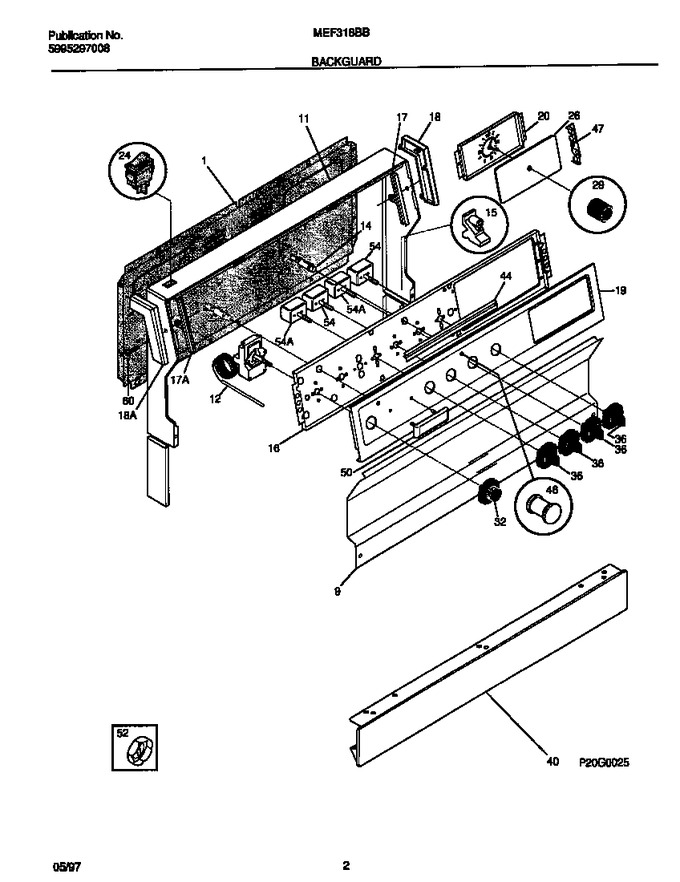

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043602		Trim-splasher, Almond		Appelez-nous	-
11	316083712		Trim-wrapper		Appelez-nous	-
12	5303212745		Thermostat-oven		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
17	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18	5303272308		End Cap,black ,rh		Appelez-nous	-
18	5303272307		End Cap,black ,lh		Appelez-nous	-
19	316034510		Panel-control, Metal		Appelez-nous	-
20	316043702		Clock/timer, T.o.d. 1 Stem, 220 V, 50 Hz		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
26	5303208985		Lens-clock, Glass		Appelez-nous	-
29	316029008		Knob-clock				$ 40.16
32	316016803		Knob-thermostat		Appelez-nous	-
36	316016902		Knob-control, Infinite Sw		Appelez-nous	-
40	316062329		Panel, Manifold, Black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065800		Lens, Light/lamp, Indicator, Amber		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
54	5303285143		Switch, 8`` Element		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
*37000	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*37001	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*37002	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*37003	316095404		Nameplate		Appelez-nous	-
*37004	5303272555		Clip-backguard		Appelez-nous	-
