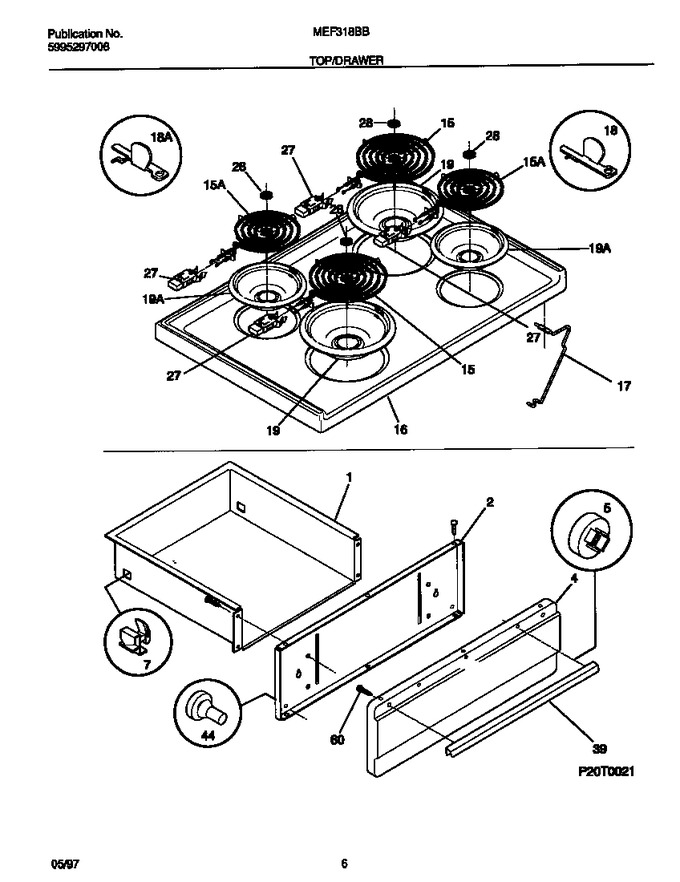

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318372211		Element-surface, Small/6 Inch   (Replaces: 08067762)			Immediately	$ 45.14
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303012223)			Immediately	$ 44.39
16	3013512		Main Top-almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048414		Pan-surface Element, Small/6 Inch, Chrome, (2)			Immediately	$ 16.11
19	316048413		Pan-surface Element, Large/8 Inch, Chrome, (2)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
39	3201268		Handle-drawer, Brushed Chrome		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
*37009	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*37010	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*37011	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*37012	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28
*37013	316001731		Harness-wiring,surface Element		Appelez-nous	-
28A	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
28B	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
