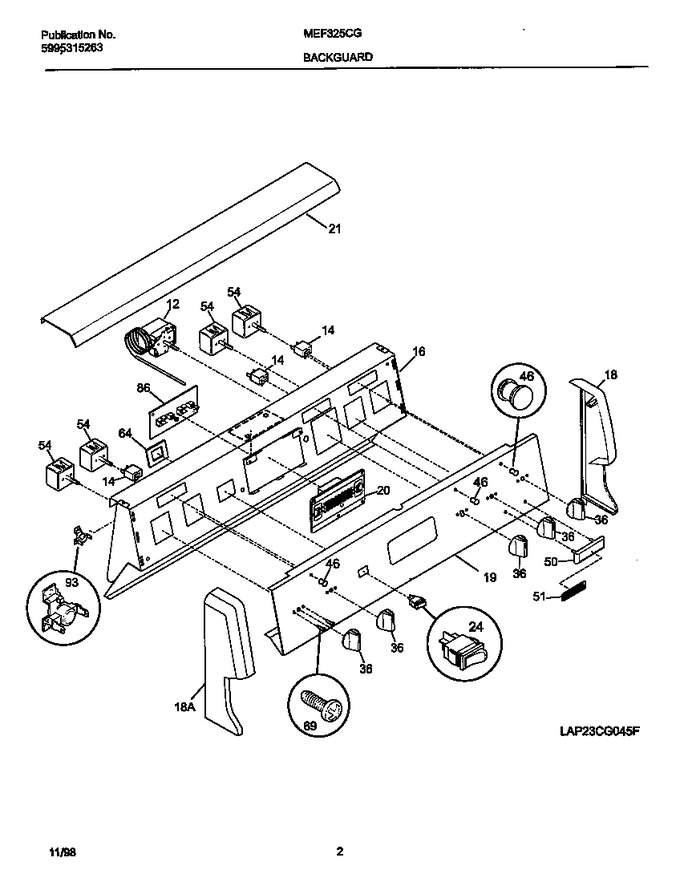

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	6700G0001		Thermostat-oven   (Replaces: 5303324850)			Immediately	$ 295.97
14	3200297		Light-lamp/indicator		Appelez-nous	-
16	318117427		Panel-switch		Appelez-nous	-
18	318118301		End Cap,lh		Appelez-nous	-
18	318118300		End Cap,rh		Appelez-nous	-
19	318117158		Panel-control,metal		Appelez-nous	-
20	318013901		Clock/timer		Appelez-nous	-
21	318118000		Trim-canopy/shield,white		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
36	318017110		Knob-control				$ 43.00
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
50	318146600		Nameplate				$ 8.82
51	318075707		Label,nameplete(gibson)		Appelez-nous	-
51	318075703		Label,nameplete(frigidaire)		Appelez-nous	-
51	318075705		Label,nameplete(kelvinator)		Appelez-nous	-
51	318075704		Label,nameplete(white-westinghouse)		Appelez-nous	-
54	318120500		Switch-surface Unit				$ 186.80
64	318112200		Plate-mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw   (Replaces: 5303323134)				$ 3.12
86	318111201		Plate-connecting		Appelez-nous	-
93	318003605		Switch-thermal   (Replaces: 3202388)				$ 178.61
*04160	08016432		Screw,8-18 X 3/8		Appelez-nous	-
*04161	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*04162	5303310510		Screw <10-24 X 5/8 >				$ 14.18
*04163	5303300265		Screw, 8-18 X 1/2				$ 15.17

    View Diagram in Separate Window       Print Part List
