SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer

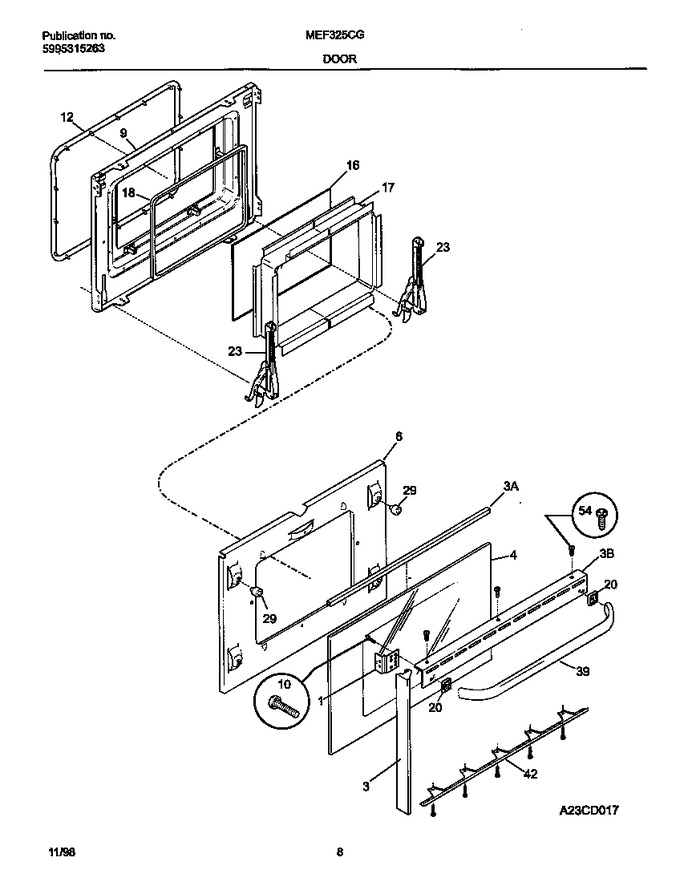

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim,handle				$ 52.87
3	318028900		Trim-oven Door,upper				$ 34.82
3	318049202		Trim-oven Door, White, Side				$ 7.93
3	318049020		Trim-oven Door, White, Upper				$ 156.82
4	318041110		Glass-oven Door,white ,outer		Appelez-nous	-
6	318056802		Shield-insulation		Appelez-nous	-
9	318048803		Liner-oven Door		Appelez-nous	-
10	5303323139		Screw				$ 13.46
12	318053301		Seal-oven Door			Immediately	$ 122.90
16	318041603		Glass-oven Door,inner				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
20	318014301		Spacer-handle,white				$ 48.88
23	5303320452		Hinge,oven Door		Appelez-nous	-
29	5303310535		Bumper		Appelez-nous	-
39	316091119		Handle-door, White, Oven		Appelez-nous	-
42	5303311194		Trim-oven Door, White,oven		Appelez-nous	-
54	316021109		Screw   (Replaces: 5303317175)			Immediately	$ 27.50
*04168	3201899		Washer,hinge Assy		Appelez-nous	-
*04169	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*04170	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
