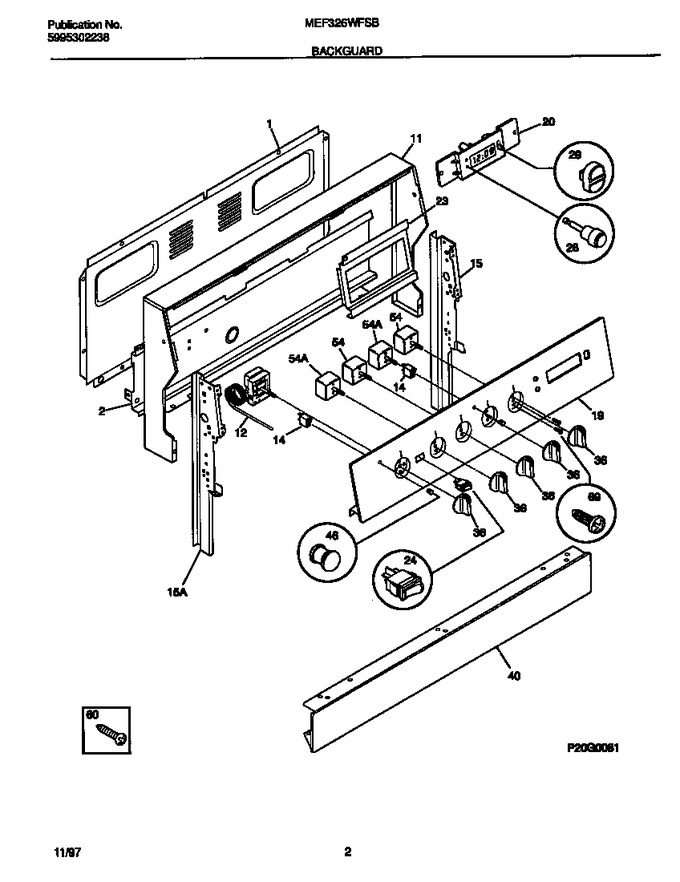

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061842		Trim-wrapper, White		Appelez-nous	-
12	316032401		Thermostat-oven		Appelez-nous	-
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
14	316022503		Light/lamp, Indicator, Yellow, 250 V			Immediately	$ 70.16
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316076556		Panel-control		Appelez-nous	-
20	316096001		Clock/timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
28	316017303		Button-clock, White				$ 53.76
29	316028402		Button-selector, Clock/timer, White				$ 48.72
36	316015204		Knob-control, White, (6)		Appelez-nous	-
40	316062330		Panel-manifold, White		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (2)		Appelez-nous	-
54	316436001		Switch-8`` Element, (2)   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch-6`` Element, (2)   (Replaces: 316021500)			Immediately	$ 51.95
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*52840	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*52841	316096901		Bezel-nameplate, White				$ 9.82
