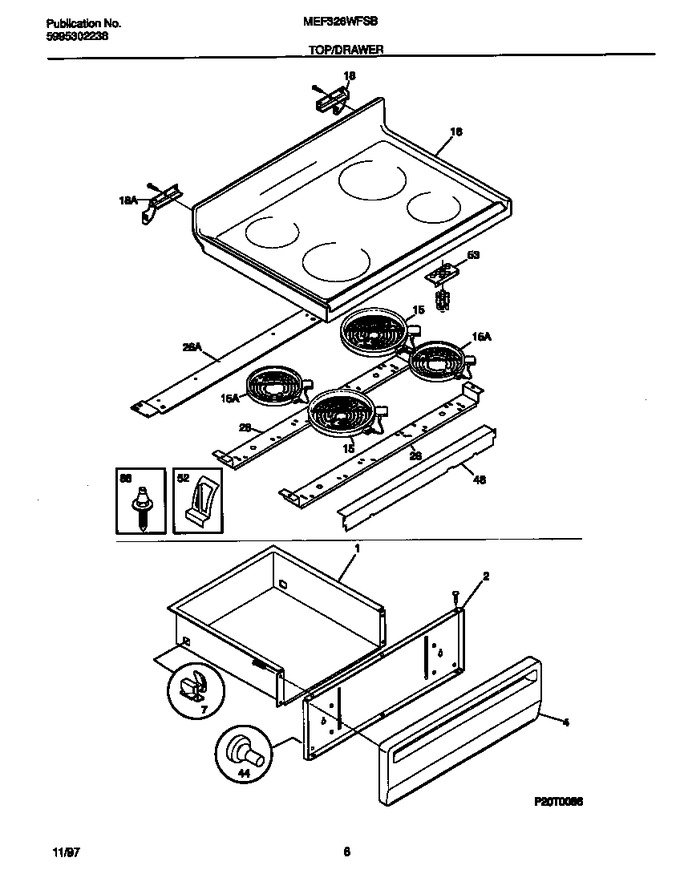

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198834		Element-surface, Radiant, Large/8 Inch, 2100w, Limit Sw   (Replaces: 316010204)				$ 205.36
15	318198817		Element-surface, Radiant, Small/6 Inch, 1200w, Limit Sw   (Replaces: 316010203)			Immediately	$ 192.78
16	316098102		Main Top Assy, Glass/steel, Enamel, White		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
26	316099201		Bracket-support, Chassis		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface, 4 Hole		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
*52846	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*52847	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*52848	316089600		Spacer-drawer, (2)		Appelez-nous	-
*52849	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*52850	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*52851	5309951550		Cleaner-cooktop		Appelez-nous	-
*52852	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
